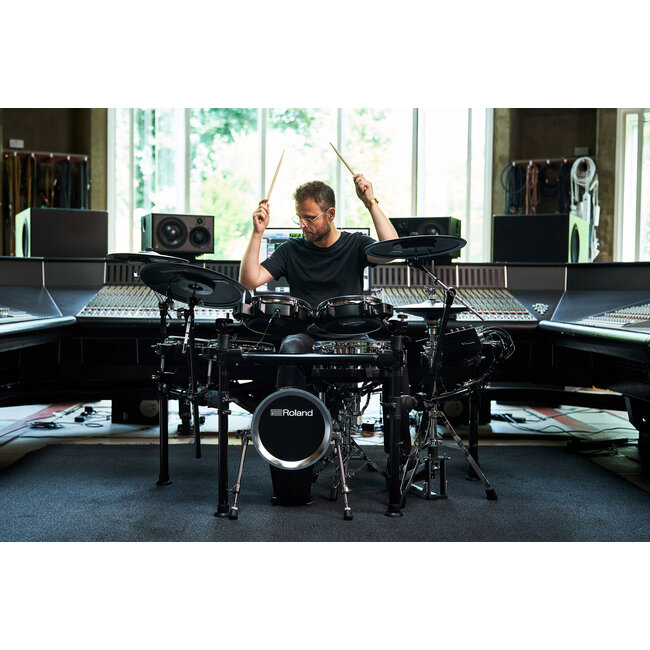

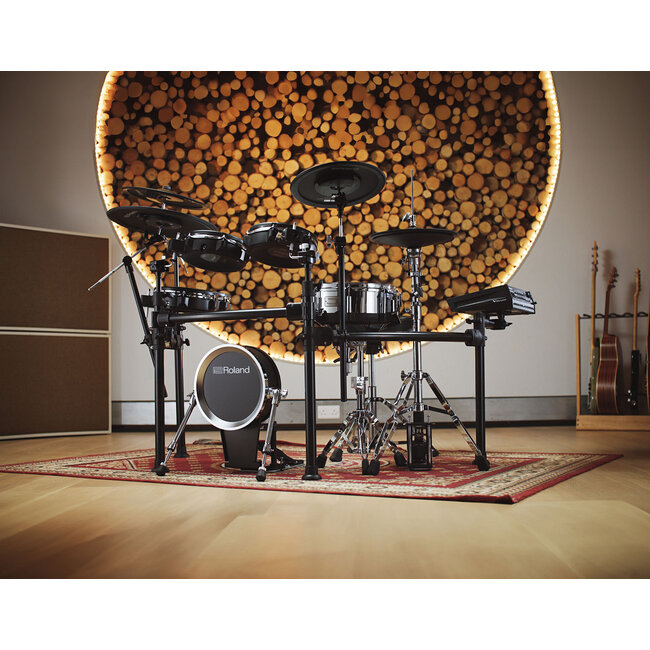

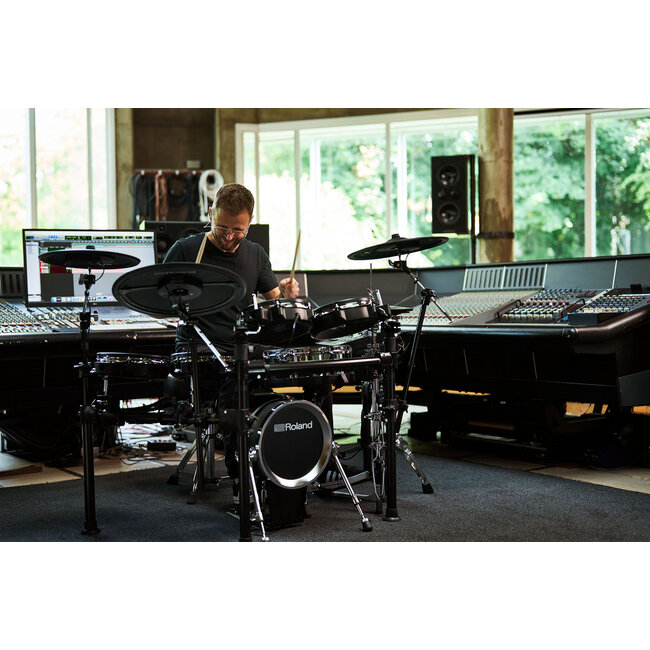

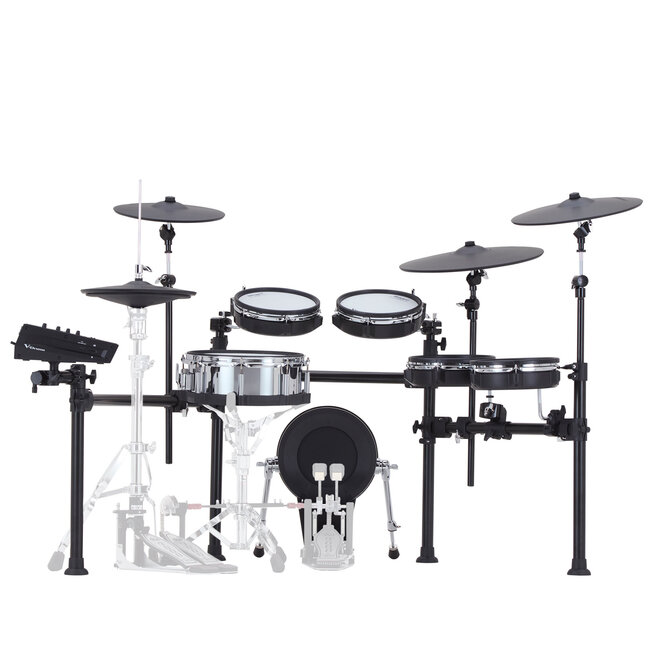

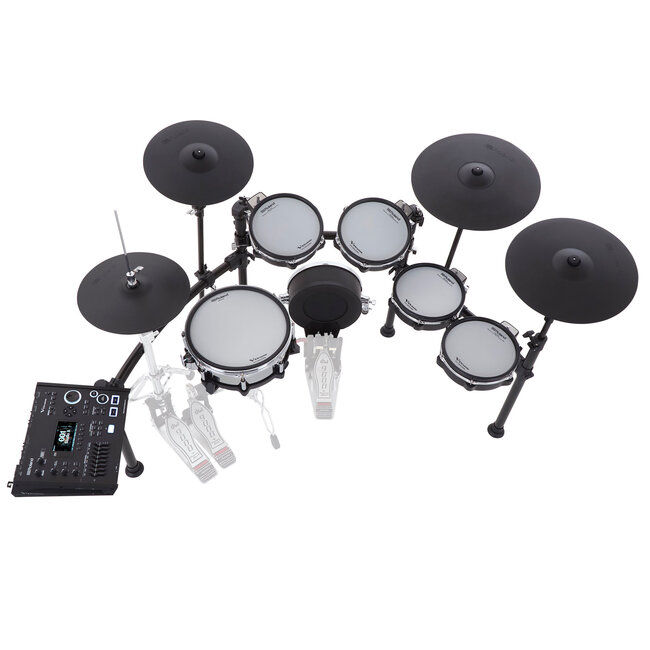

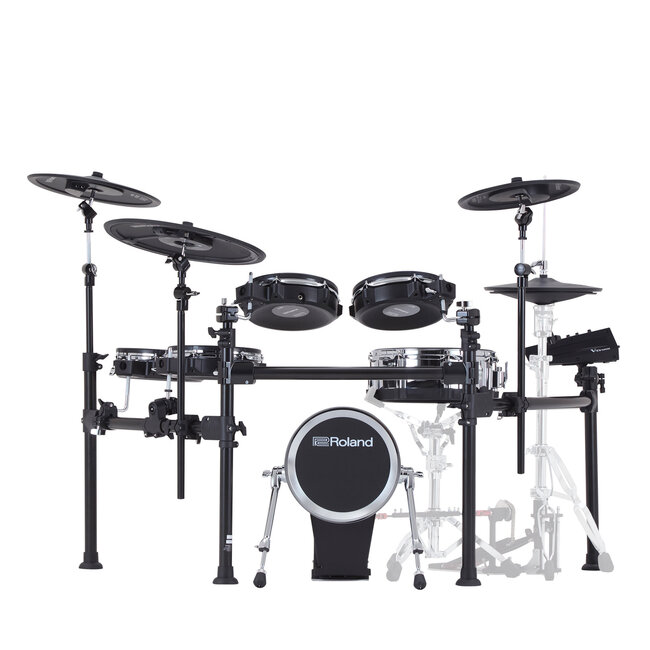

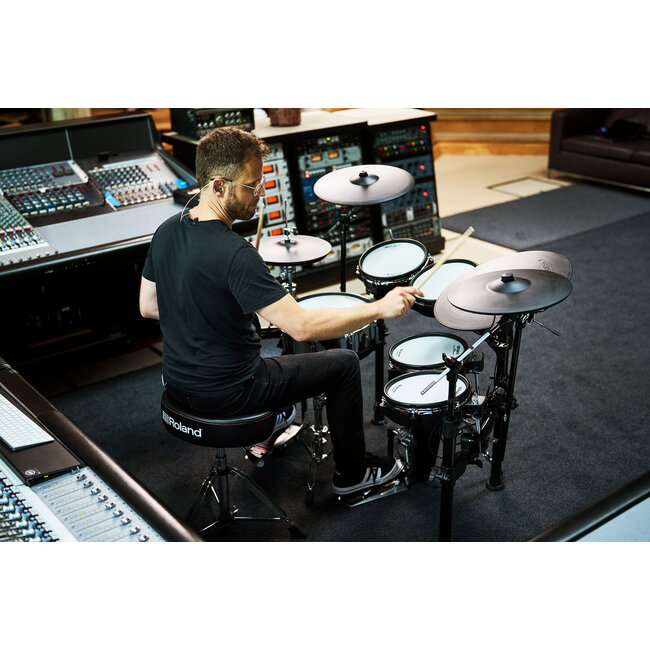

TD713
Streamlined V-Drums 7 Series Kit with the
Expandable V71 Module and Advanced Pads
The TD713 delivers V-Drums 7 Series performance in a
streamlined electronic kit with the expandable V71 module
and our latest pads.
The PD-14DSX takes our digital snare technology to the
next level with even more detailed sensing, a snare

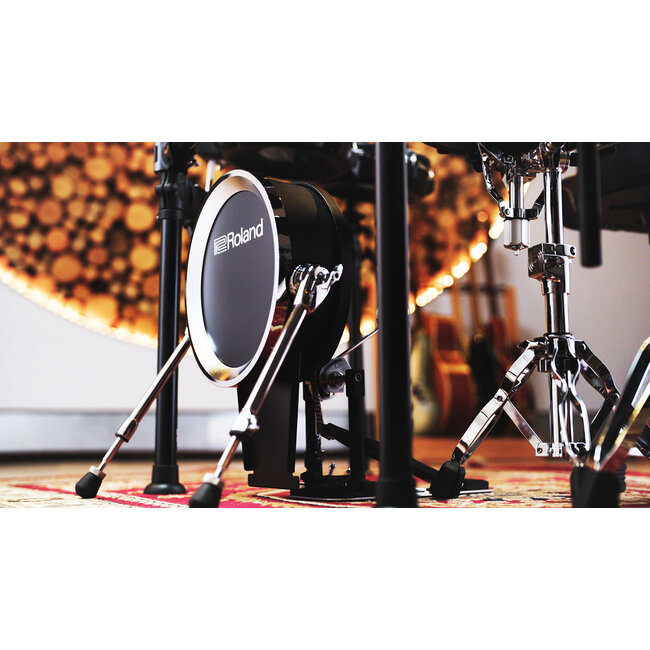

throw-off lever, and a snare tension knob. The KD-12
kick pad offers a satisfying feel and a compact profile for
easy placement. Completing this expressive kit are our
acclaimed digital hi-hat and ride pads, four PDX-100 tom
pads, two V-Cymbals, and the MDS-GND2 stand.
|
BOX 1 – TD713-1 (LEAD BOX)
1040 x 630 x 620mm | NET 43kg | GR tba |
|
BOX 2 – KD-12 610 x 540 x 240mm – | NET 11kgkg | GR tba |
|
BOX 3 – DRUMRACK
992 x 425 x 318mm – | NET 17.9kg | in box 23.63kg
|
|
V71 DRUMMODULE
-Drum Kits
200 (Preset: More than 70)
-Instruments
More than 1000
-Effect Types
Layer Transient: each layer
Layer Equalizer: each layer
Pad Equalizer: each pad (by head and rim)
Pad Compressor: each pad (head and rim common)
Overhead Mic Simulator
Room/Reverb/Kit Resonance
Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
Bus Reverb
Master Compressor
Master Equalizer
-User Sample Import
Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
-Song Player (SD Card)
Audio File: WAV (44.1 kHz, 16/24 bits), MP3
-Recorder
Recording Method: Realtime
Maximum Note Storage: approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16 bits), SMF
or
Recording Method: Realtime
Maximum length: 60 min (temporary recording: 1 min) (*1)
File format: WAV (44.1 kHz, 16 bits)
-Display
Graphic color LCD 4.3 inch
TRIGGER ACTIVITY Indicator (LED)
-Faders
8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
-External Memory
SD Card (SDHC supported)
-Connectors
TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced
MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
FOOT SW jack: 1/4-inch TRS phone type
DC IN jack
-Number of USB Audio Record/Playback Channels
Vendeor Mode
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 32 channels
Playback: 32 channels
Generic Mode
Sampling Rate (Original): 44.1 kHz
Record: 2 channels
Playback: 2 channels
-Power Supply
DC 12V (AC Adaptor)
-Current Draw
2,400 mA
-Power consumption when in off mode (when the power automatically turns off)
0.2 W
-Dimensions
330 (W) x 308 (D) x 110 (H) mm
13 (W) x 12-1/8 (D) x 4-3/8 (H) inches
-Weight
4.2 kg
9 lbs 5 oz
-Accessories
Quick Start
Roland Cloud Connect Setup Guide
Roland Cloud Activation Card
AC Adaptor
-Options (sold separately)
Pad: PD series, PDX series, BT-1
Cymbal: CY series
Kick: KD series, KT series
Hi-Hat: VH series
Hi-Hat Control Pedal: FD series
Acoustic Drum Trigger: RT series
Footswitch: BOSS FS-5U, FS-6
Personal Drum Monitor: PM series
(*1) Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 1 minutes.
|
