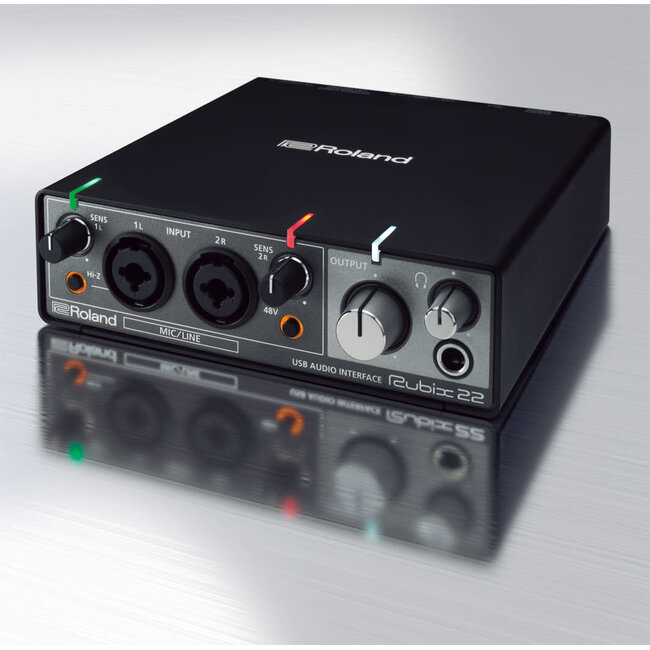

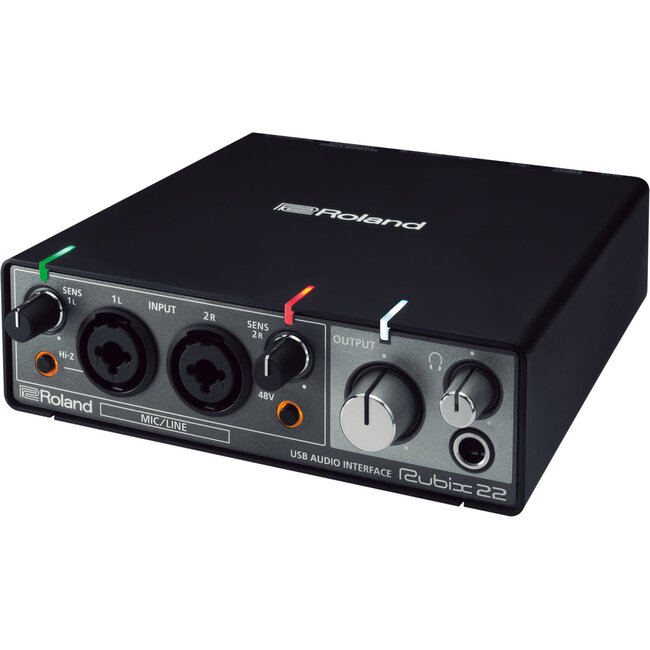

Roland RUBIX22 USB Audio Interface
2-IN/2-OUT, HIGH-RESOLUTION INTERFACE VOOR MAC, PC EN IPAD
Rubix22 biedt de perfecte balans tussen een hoogwaardige sound, solide bouwkwaliteit, compacte afmetingen, een betaalbare prijs en cruciale features voor hedendaagse muzikanten en producers. Met zijn ondersteuning voor hoge resolutie audio tot 24-bit/192kHz, klinkt Rubix22 helder en gedefinieerd. Dankzij een zorgvuldig ontwerp is hij van input naar output tevens zeer ruisarm. De universele usb-ondersteuning zorgt ervoor dat hij naadloos samenwerkt met MAC- en PC-computers én zelfs met iPads. Kortom: dit is de ultieme mobiele opnameoplossing voor muziekproducties en –performances.
- SYSTEM
- Number of Audio Record/Playback Channels
- Record: 2 channels
Playback: 2 channels
- Signal Processing
- PC interface: 24 bits
AD/DA conversion: 24 bits
- Sampling Frequency
- AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
- Interface
- Hi-Speed USB
MIDI IN, OUT

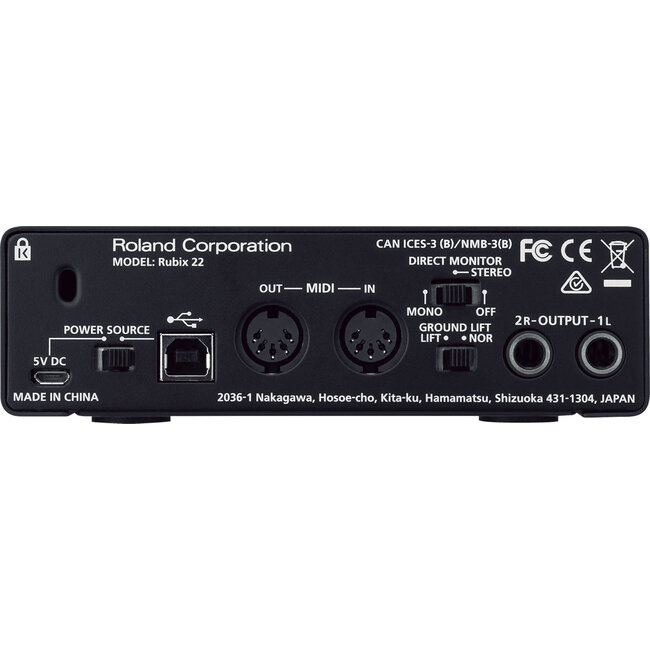

- Connectors
- INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedance

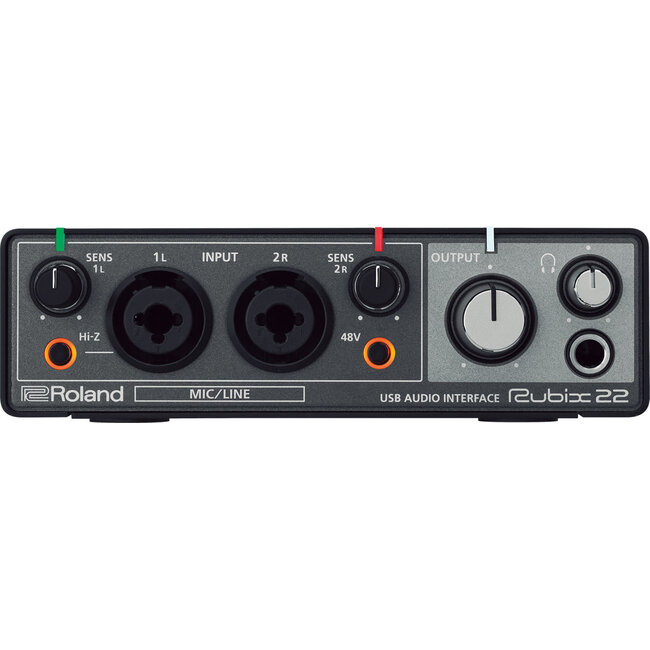

- Controllers
- SENS 1L, 2R knobs
Hi-Z switch
48V switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
DIRECT MONITOR switch
GROUND LIFT switch
- Indicator
- Level indicators (1L, 2R)
POWER indicator
Hi-Z indicator
48V indicator
- CHARACTERISTICS
- Nominal Input Level
- INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu
- Maximum Input Level
- INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
- Nominal Output Level
- OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)
- Maximum Output Level
- OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)
- PHONES Maximum Output Power
- 20 mW + 20 mW (L + R, 47 ohms load)
- Headroom
- 14 dB
- Input Impedance
- INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned on
- Output Impedance
- OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohms
- Residual Noise Level
- INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)
- Dynamic Range
- AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R) jacks: 109 dB typ.
- OTHER
- Power Supply
- Supplied from the computer via USB, DC 5V
- Current Draw
- 500 mA
- Operating System
- Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or later
- Dimensions
- 145 (W) x 165 (D) x 46 (H) mm
5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inches
- Weight (main unit only)
- 1.0 kg
2 lbs 4 oz
- Accessories
- Setup Guide
Leaflet "USING THE UNIT SAFELY"
USB cable
Ableton Live Lite Serial Number Card
* 0 dBu = 0.775 Vrms
