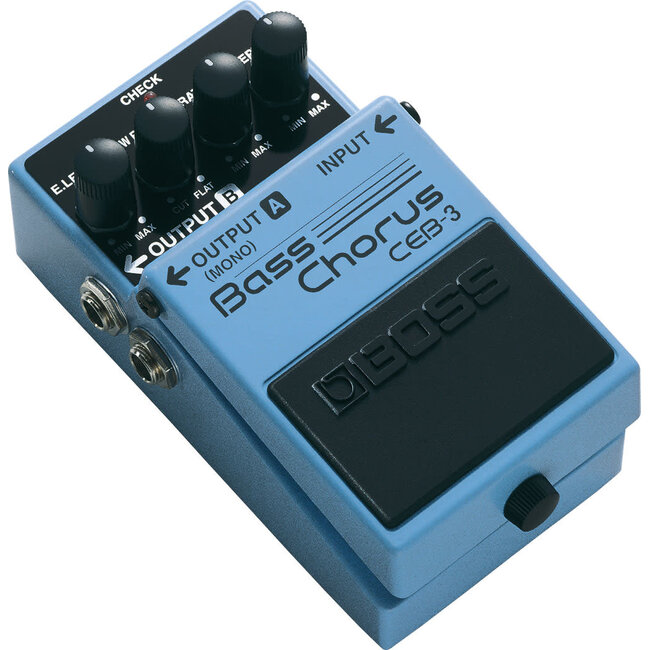

Deze split-frequency chorus past een warme, rijke chorus toe op de hoge frequenties zonder dat de lage tonen flets gaan klinken. Een Space Synthesis-effect garandeert een natuurlijk en ruim chorus-effect.
Nominal Input Level-20 dBu
Input Impedance1 M ohm
Nominal Output Level-20 dBu
Output Impedance1 k ohm
Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass

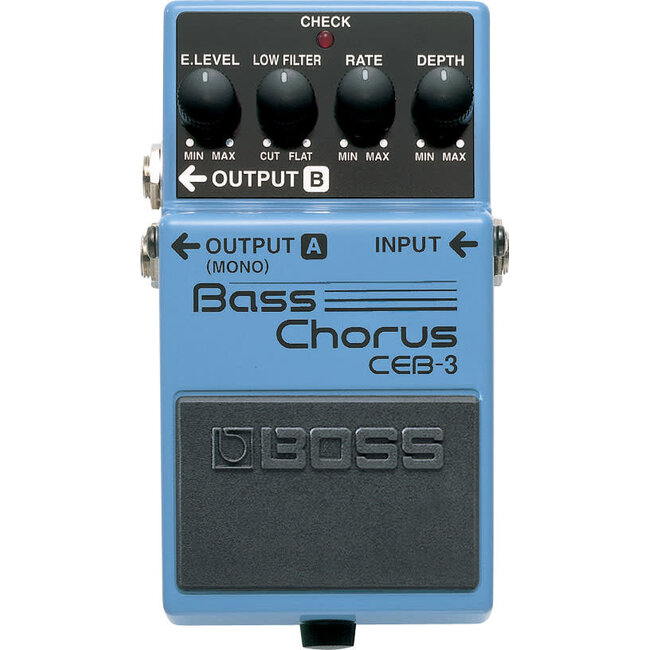

Controls DEPTH (Modulation depth) knob
RATE (Modulation rate) knob
LOW FILTER knob
E.LEVEL knob
Pedal switch Indicator CHECK indicator (Used for indication of check battery)ConnectorsINPUT jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack Power SupplyAlkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw55 mAExpected battery life under continuous useAlkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA seriesSIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight(including battery)420 g
15 oz* 0 dBu = 0.775 Vrms* The specifications are subject to change without notice.
