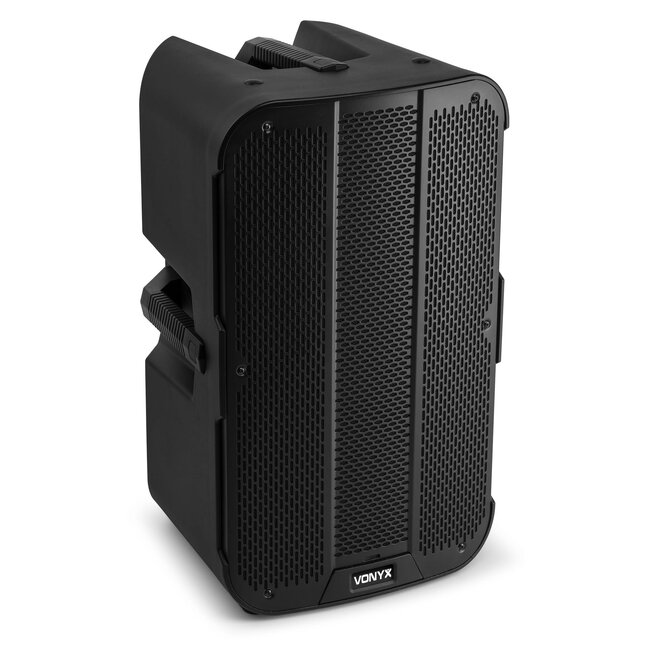

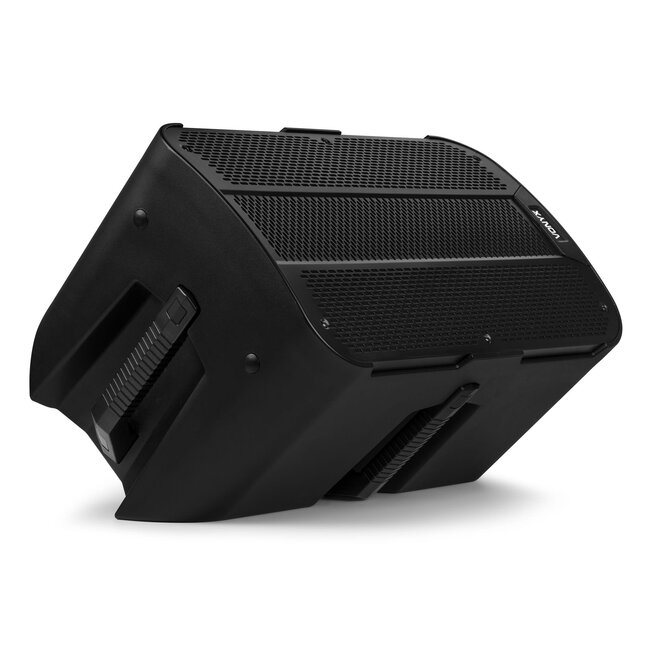

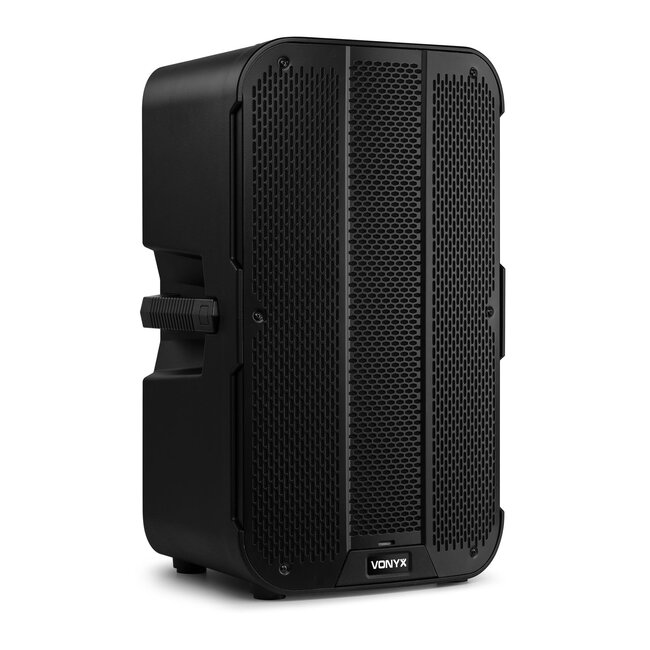

The VDA series consists of a range of high-power speakers equipped with two built-in amplifiers - a dedicated LF amplifier and an HF amplifier - that ensure optimal sound reproduction across all frequencies. The built-in amplifier unit is also equipped with a digital sound processor with DSP mode selector. Crafted from durable ABS material, these speakers are built to withstand the rigours of the road while offering good handling for easy transportation and installation. From live shows to club installations, the VDA series is the ultimate choice for those who demand quality and reliability for their audio equipment.
| Brand | Vonyx |
|---|---|
| Product colour | Black |
| Speaker type | Active (amplified) |
| Amplifier type | Bi-amp Class D |
| Playback options | BT 5.0 streaming, Line input, Microphone (input) |
| Output power: Max | 800W |
| Output power: RMS | 400W |
| Tweeter type | Titanium Compression Driver |
| Diameter tweeter | 1" |
| Voice coil HF | 1.75" |
| Diameter woofer | 12" |
| Voice coil | 2.5" |
| Magnet type | Ferrite |
| Magnet weight | 60 oz |
| Frequency response (± 3dB) | 50 - 20kHz |
| Frequency response (-10dB) | 40 - 20kHz |
| SPL @ 1W/1m | 95dB |
| SPL max | 128dB |
| Dispersion | 90° x 60° |
| DSP Resolution | 24-bit |

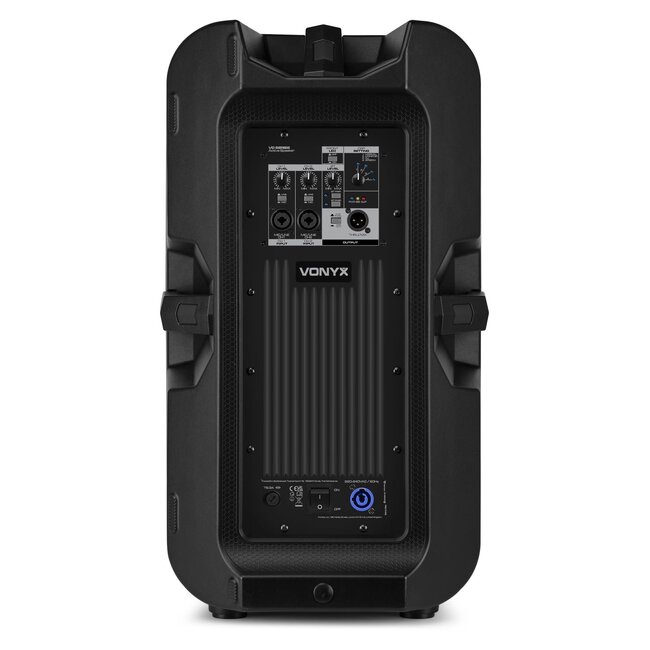

| Input connections | 6.3mm Jack, XLR (3-pin) |
| Output connections | XLR (3-pin) |
| Power supply | 220-240VAC 50/60Hz |
| Features | Dual tilt speaker pole mount |
| Dimensions (L x W x H) | 370 x 370 x 615mm |
| Weight (kg) | 19.7 |
| Included accessories | Power cable |
