1st Chair Height Adjustment

1st Chair thrones offer the best of both worlds-the exact height adjustment of threaded rod thrones with the fast adjustment of T-bolted systems:

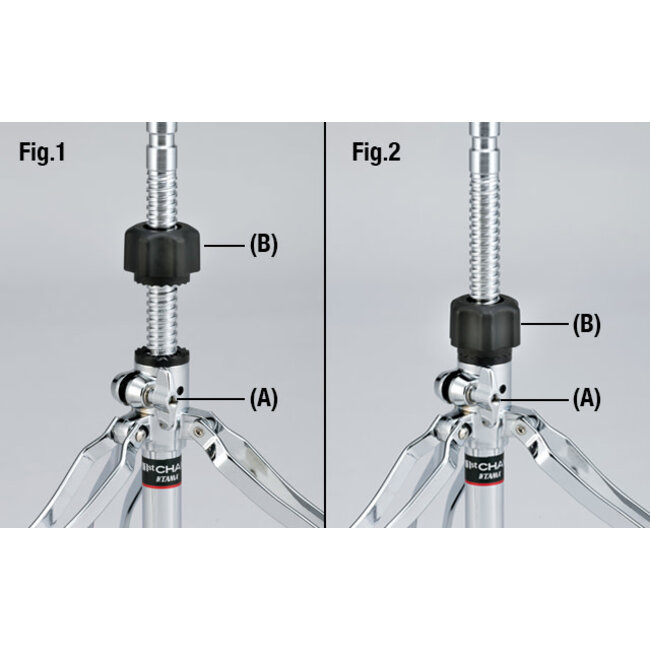

1. Loosen the bolt (A) and raise the threaded rod to the approximate desired height (it's not necessary to get the exact height at this point).

2. Screw the Height lock (B) down to the top of the nylon bushing.

3. If a minor adjustment is necessary, simply turn the Height lock or rotate the seat.

4. Tighten the bolt (A) firmly.
