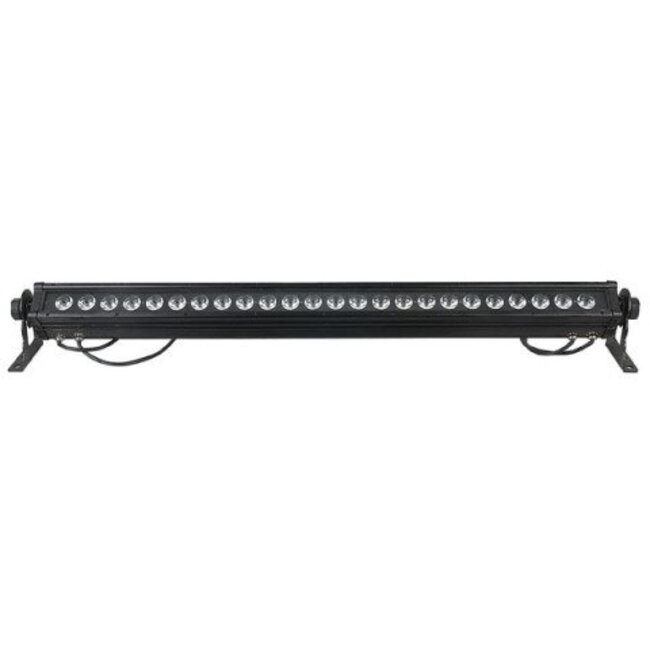

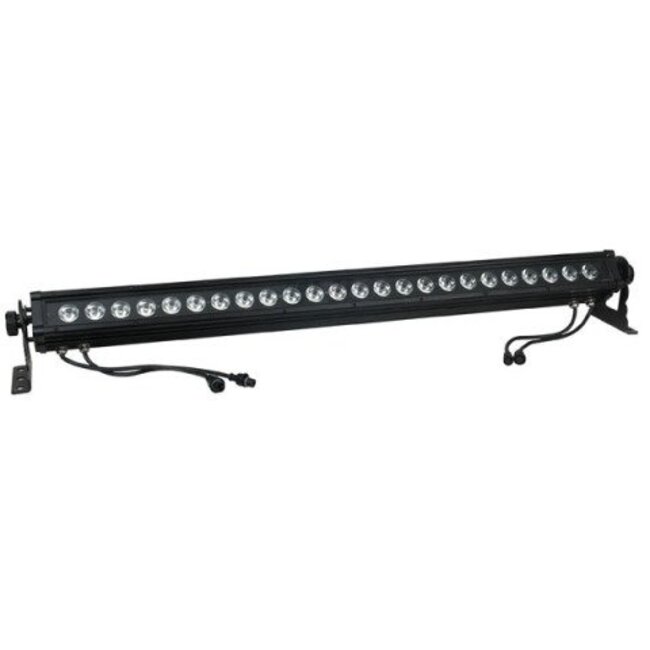

The Cameleon Bar 24 is a compact and powerful UV fixture for both indoor and outdoor use. The specially designed housing has a stylish design and has the function of convection cooling which eliminates the use of fans.
Specifications
Lux (@ 2 meter) UV 24
Max distance: 10m
LED Quantity: 24 pieces UV LED
Drive current: 500mA
Input-voltage: 100~240VAC...50/60Hz
Power Consumption: 70W @FO
Display: LED display for auto andÂ
custom control
Control: DMX-512, Auto, Master/Slave
Dimmer: 0-100%
Strobe: 0-20Hz
Beam Angle: 25 degrees
Housing: Die Cast AluminiumÂ
Powder Coat Finish
Colour: Black
Lens Plate: Tempered Glass
DMX Connection Dedicated IP65 connector.
Dedicated IP65 Powerconnector
Cooling: Convection (no fans)
IP Rating: IP65
Dimensions: 1110 x 128 x 120 mm
Weight: 6,1 kg
Refreshrate: 7,8 KHz
Accessories: Schuko to IP powercable
