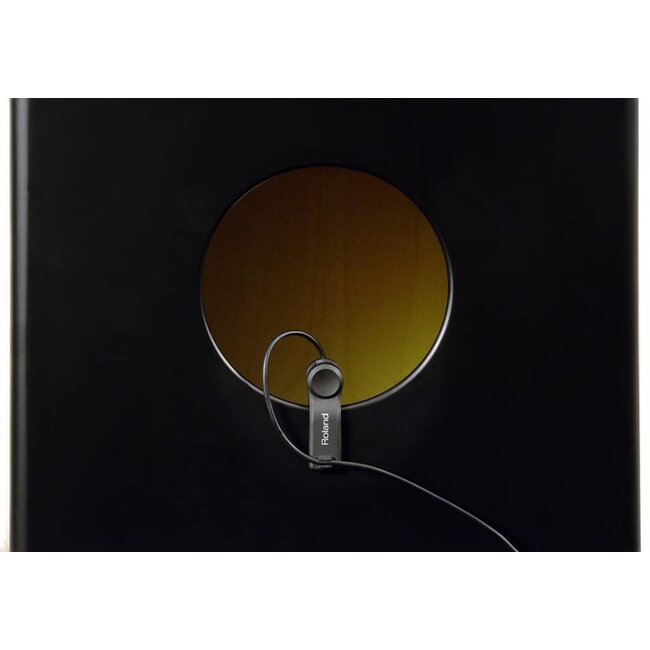

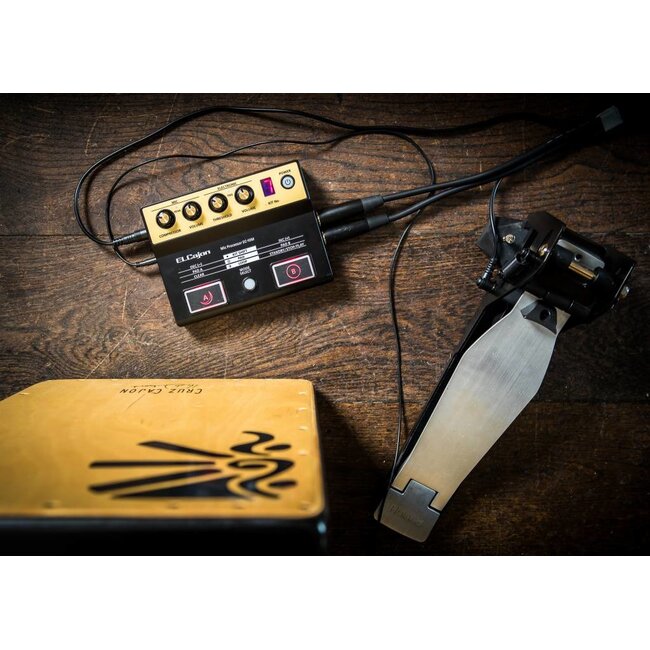

- The EC-10M ELCajon Mic Processor is a totally unique and innovative creative tool designed for the acoustic cajon. Compact and battery powered, the EC-10M picks up the cajon’s acoustic sound with the included clip-on condenser mic, which is also used to trigger a variety of onboard tones for layering with the acoustic voice. You can then send both sounds to an amp or PA, giving you complete control over your stage sound. It’s also possible to create percussion phrases with a built-in looper, and play additional sounds via integrated A/B foot pads or optional kick trigger pedals. Everywhere you play, the EC-10M transforms the acoustic cajon experience with a world of new expressive power.
SecificationsSound Kit Variation16Layered Sound Contents2 (High, Low)Controls[Top Panel]

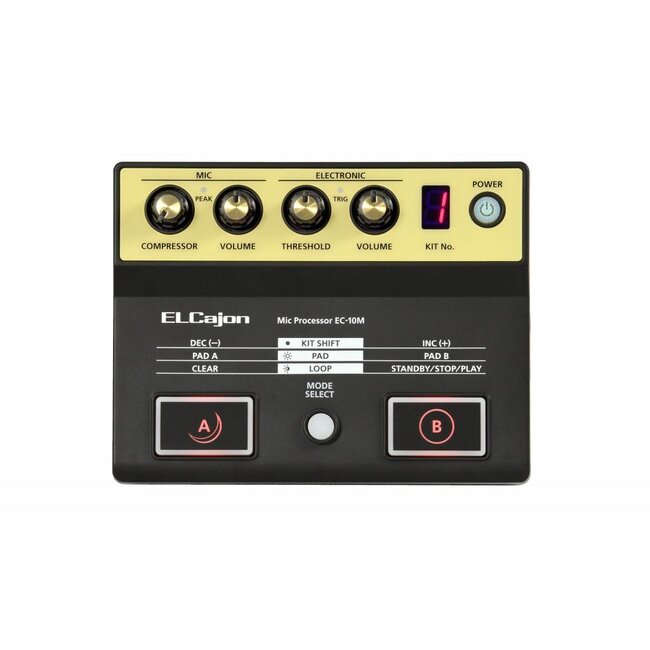

POWER switch
(MIC) COMPRESSOR knob
(MIC) VOLUME knob
(ELECTRONIC) THRESHOLD knob
(ELECTRONIC) VOLUME knob
MODE SELECT button
A button
B button

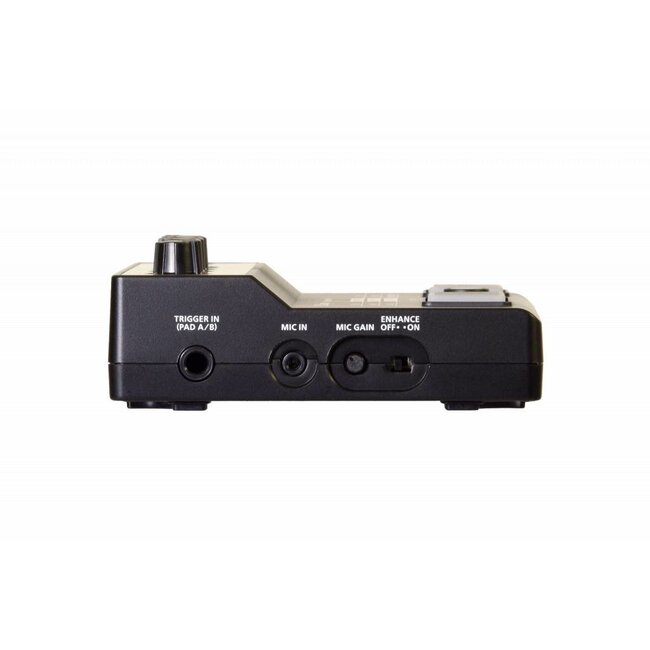

[Left Side]
MIC GAIN knob
ENHANCE switchIndicatorsKIT NumberConnectorsTRIGGER INPUT jack: 1/4-inch TRS phone type
MIC INPUT jack: Stereo miniature type (Use included clip mic only)

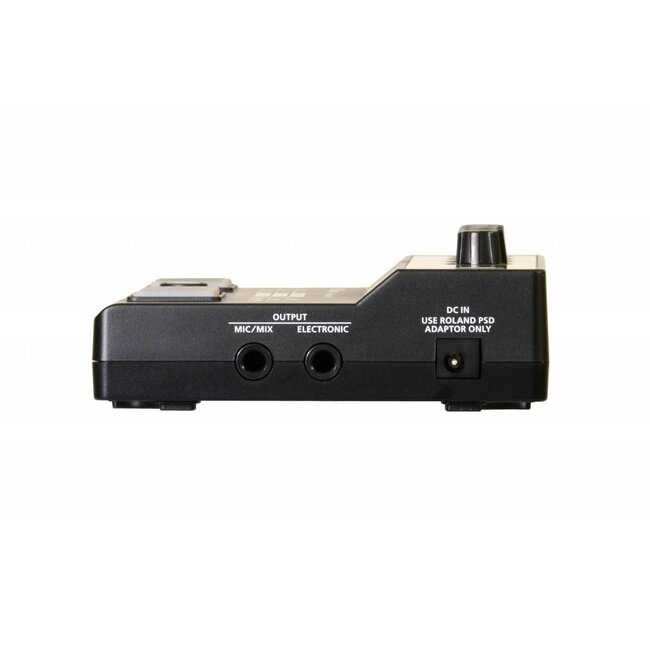

MIC/MIX OUTPUT jack (MONO): 1/4-inch phone type
ELECTRONIC OUTPUT jack (MONO): 1/4-inch phone type
DC IN jackPower SupplyAC adaptor (DC5.7V)

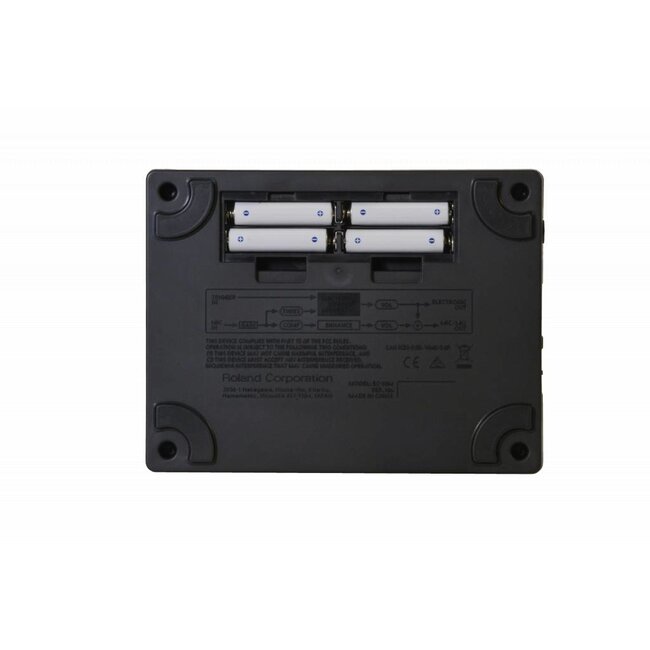

Rechargeable Ni-MH battery (AAA, HR03) x 4Current Draw150 mAExpected battery life under continuous useApprox. 5 hours.

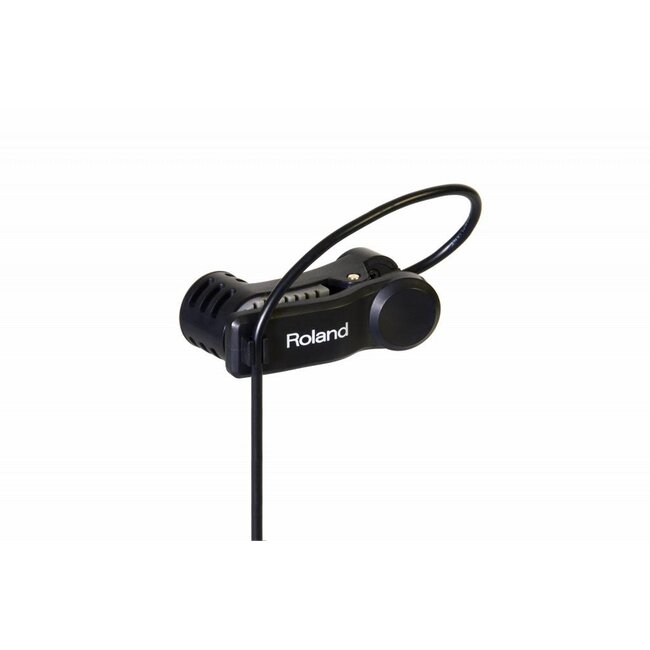

* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesClip Mic
Owner's manual
Leaflet "USING THE UNIT SAFELY"

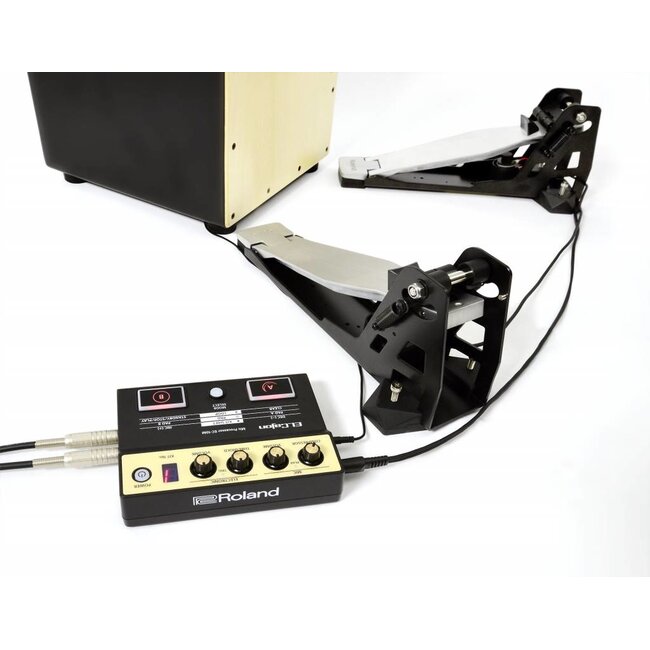

AC adaptorOptions (sold separately)Kicks: KD-7, KT-9, KT-10
Stereo Split Cable: PCS-31LSize and WeightWidth175 mm
6-15/16 inchesDepth135 mm
5-3/8 inchesHeight55 mm
2-3/16 inchesWeight500 g
1 lb. 2 oz.
