• Jack TRS & RCA input
• Separate volume control
• 2x 4 outputs
• Road proof housing

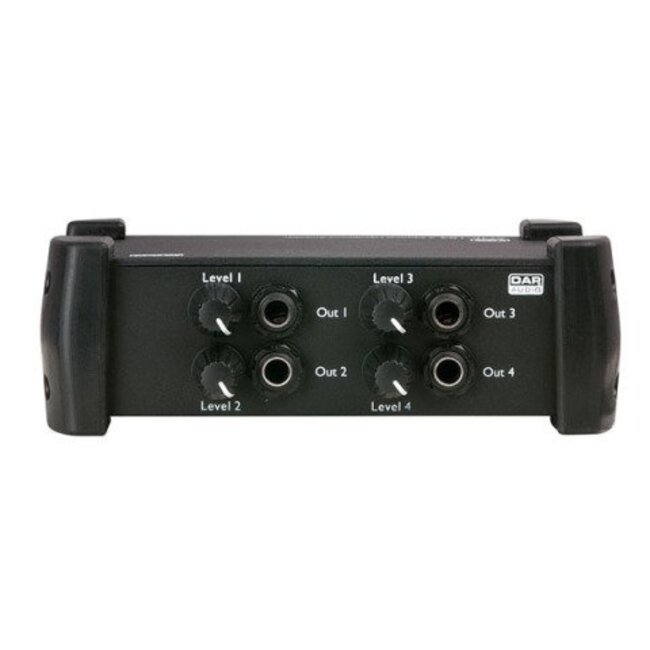

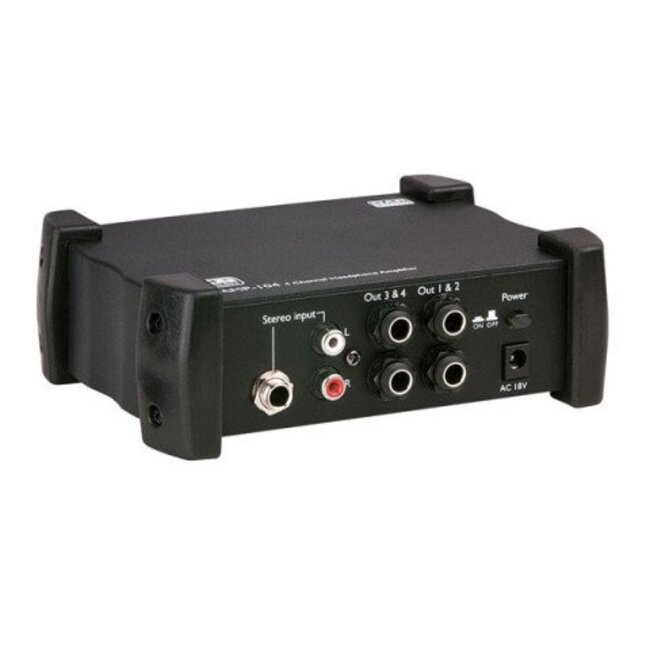

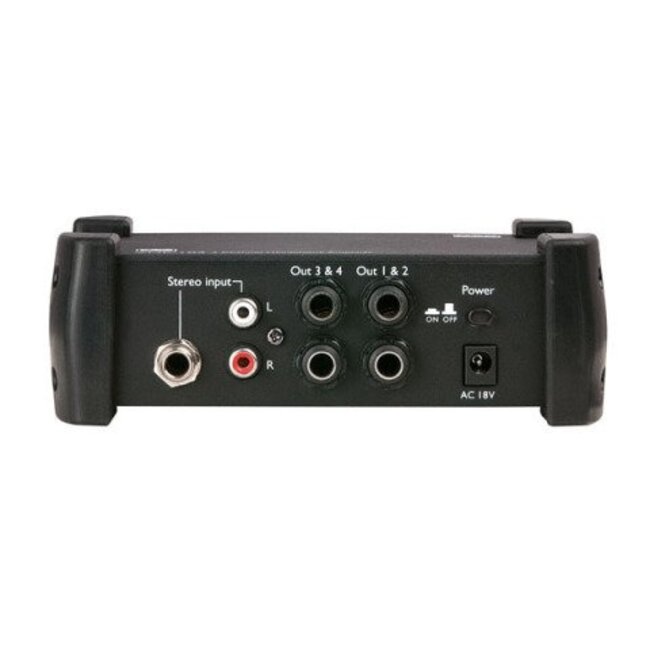

The AMP-104 is for expanding or generating 4 headphones channels. It has a 6,3 TRS Jack stereo input and also a RCA stereo input which makes it convenience for multiple applications. All 4 outputs have their own volume controls and the headphones can be connected at both sides of the AMP-104. This makes it also possible to connect 8 headphones, which will be operated in groups of 2 pcs.
Specifications
Frequency Response: 20Hz-20KHz
Inputs: 6,3 TRS Jack, RCA
Outputs: 6,3 TRS Jack (8x)
Output impedance: 2x 50 Ohm
Output power: 2x 50mW @ 32Ohm
Power supply: 18V AC (adapter included)
Dimensions: 53 x 158 x 135 mm (HxWxD)
Weight: 0,72 Kg
