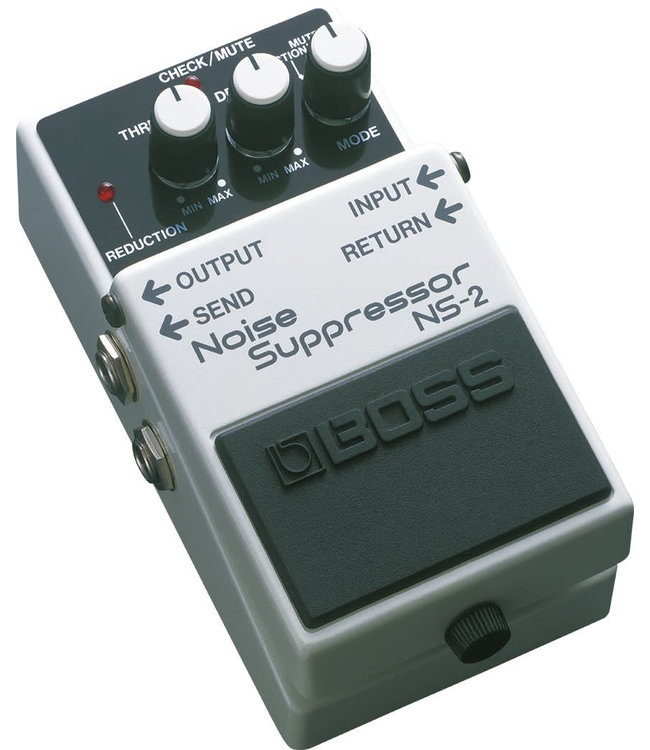

EEN “MUST-HAVE” PEDAL!
De NS-2 Noise Suppressor elimineert ongewenste ruis en brom zonder dat je klank eronder lijdt. Het is de perfecte pedal om eender welke pedalboard of setup stiller te maken.
- Compacte noise suppression pedaal om ongewenste ruis en brom te elimineren in effecten en versterkers
- Uniek noise detection circuit behoudt de natuurlijke attack en envelope van de klank van een instrument
- Treshold en Decay knoppen sturen het eliminatie/suppression element zoals gewenst
- BOSS 5 jaar garantie
- Nominal Input Level -20 dBu
- Input Impedance 1 M ohm
- Nominal Output Level -20 dBu
- Output Impedance 1 k ohm
- Recommended Load Impedance 10 k ohms or greater
- Bypass Buffered bypass
- Controls MODE
selector switch
DECAY knob
THRESHOLD knob
Pedal switch
- Indicator CHECK/MUTE indicator (Used for indication of check battery)
REDUCTION indicatorConnectorsINPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
DC IN jack
9V DC OUT jackPower SupplyCarbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw25 mAExpected battery life under continuous useCarbon: Approx. 11 hours
Alkaline: Approx. 24.5 hours
*These figures will vary depending on the actual conditions of use.AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)Options (sold separately)AC adaptor: PSA series
Parallel DC Cord: PCS-20ASIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)415 g
15 oz* 0 dBu = 0.775 Vrms* The specifications are subject to change without notice.
