Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

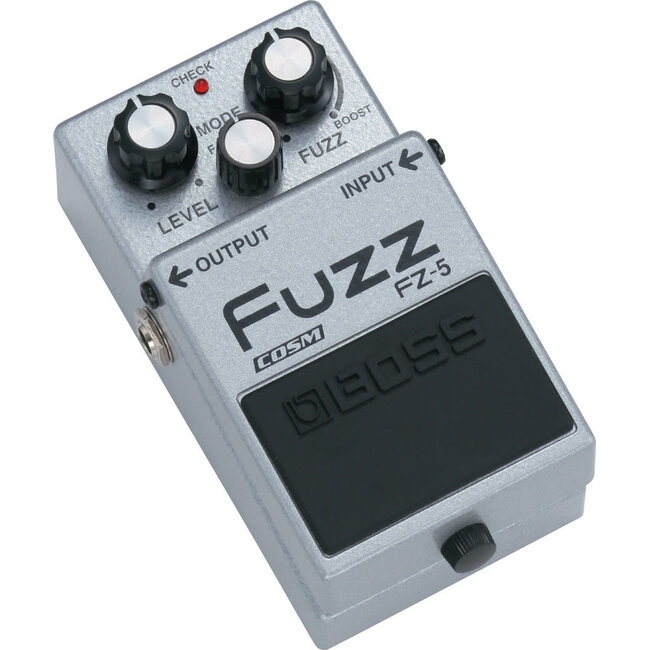

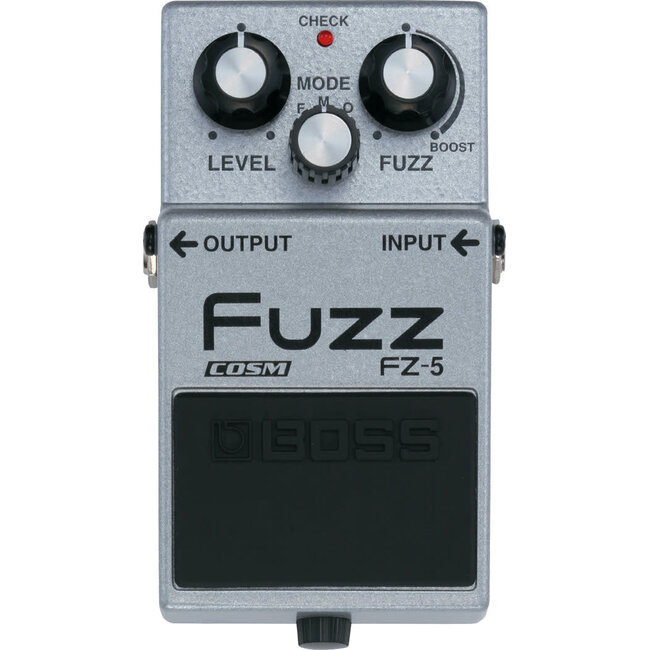

Controls

FUZZ knob
MODE knob
LEVEL knob
Pedal switch

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

60 mA

Expected battery life under continuous use

Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)

Options (sold separately)

AC adaptor: PSA series

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

405 g
15 oz

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
