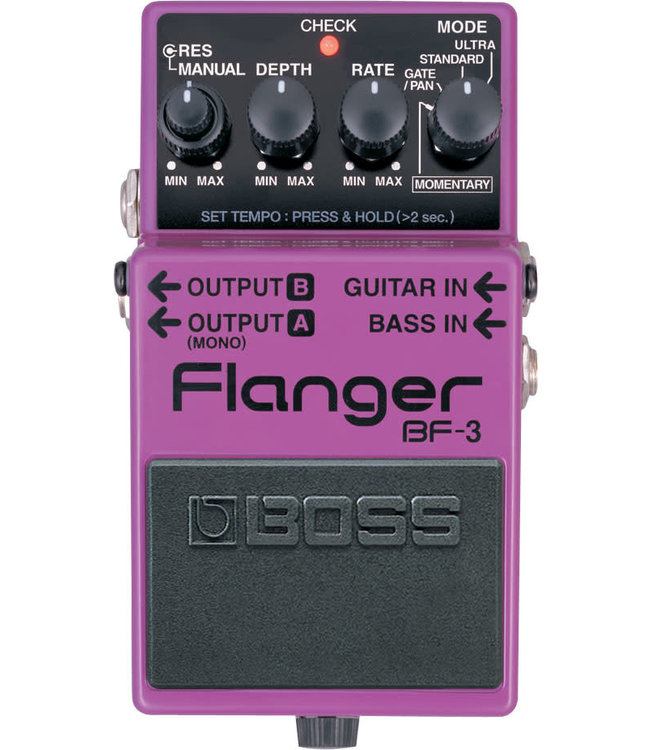

De dikste stereo flanging-klanken die ooit in een BOSS-pedaal zaten. De Ultra mode produceert de diepste flanging sounds en Gate/Pan zorgt voor een ruime flanging met een cool Slicer-effect dat als het ware rond de luisteraar “wervelt”.
SPECIFICATIONS
Nominal Input Level-20 dBu
Input Impedance1 M ohm Nominal Output Level-20 dBu Output Impedance1 k ohm Recommended Load Impedance10 k ohms or greater Bypass Buffered bypass Controls MODE knob
RATE knob
DEPTH knob
RES (Resonance) / MANUAL knob
Pedal switch Indicator CHECK indicator (Used for indication of check battery) Connectors GUITAR IN jack: 1/4-inch phone type
BASS IN jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)Current Draw60 mA Expected battery life under continuous use Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use.
Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Registration Card
Alkaline battery (9 V, 6LR61)Options (sold separately)
AC adaptor: PSA series
SIZE AND WEIGHT
Width73 mm
2-7/8 inches Depth129 mm
5-1/8 inches Height59 mm
2-3/8 inches
Weight (including battery) 425 g 15 oz* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
