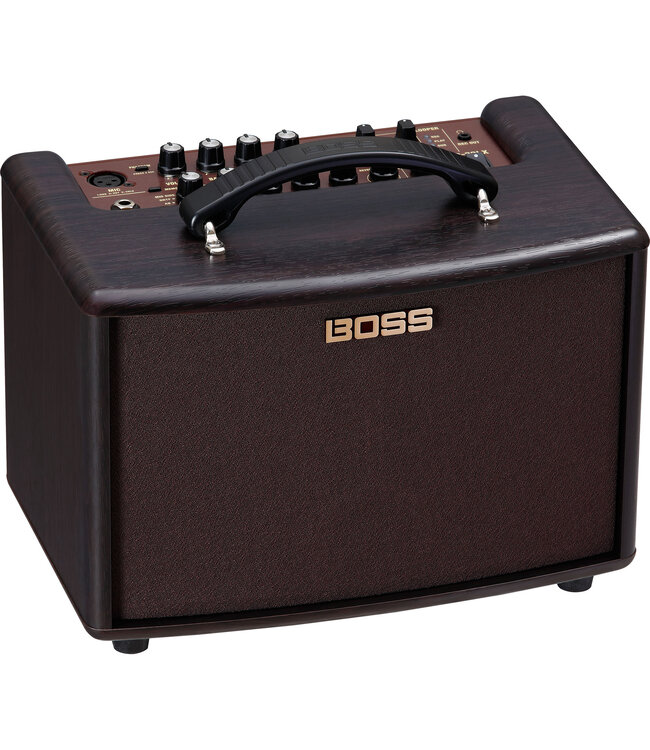

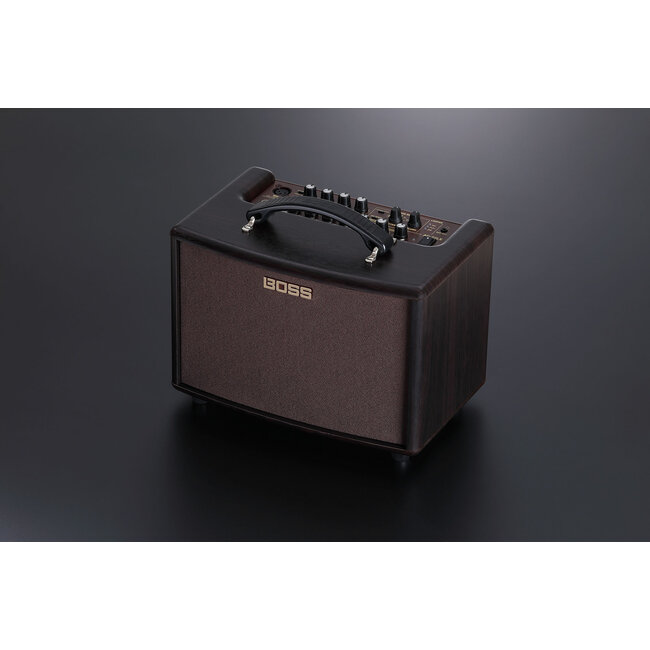

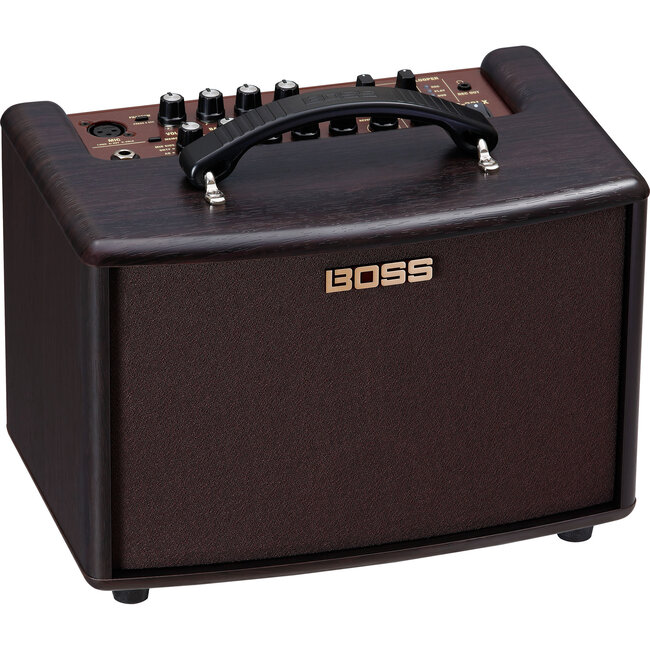

AC-22LX
Compact stereo amplifier with innovative Air Feel technology for a full-immersion acoustic sound experience. The AC-22LX presents a new concept in acoustic amplification, bringing you a full-immersion
playing experience realized through advanced BOSS spatial technology. Air Feel breathes life into the dry, sterile sound of standard acoustic instrument pickups, recreating the richly detailed tones captured by classic stereo acoustic microphone setups in world-class studio settings. The AC-22LX’s inspiring voice projects far beyond its compact size, infusing your amplified sound with depth, dimension, and natural acoustic resonance.
● Compact amplifier for acoustic-electric guitars and other pickup-equipped acoustic instruments
● Innovative Air Feel feature recreates stereo microphone setups, producing inspiring acoustic sound with depth, dimension, and natural resonance

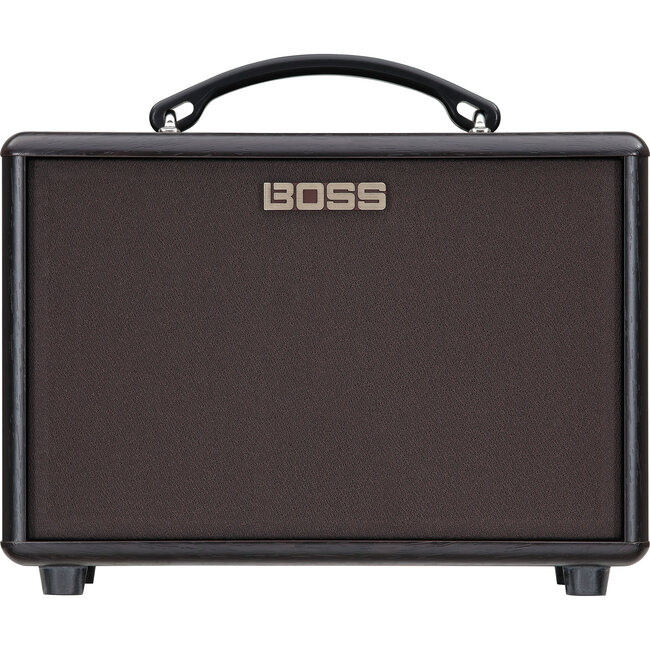

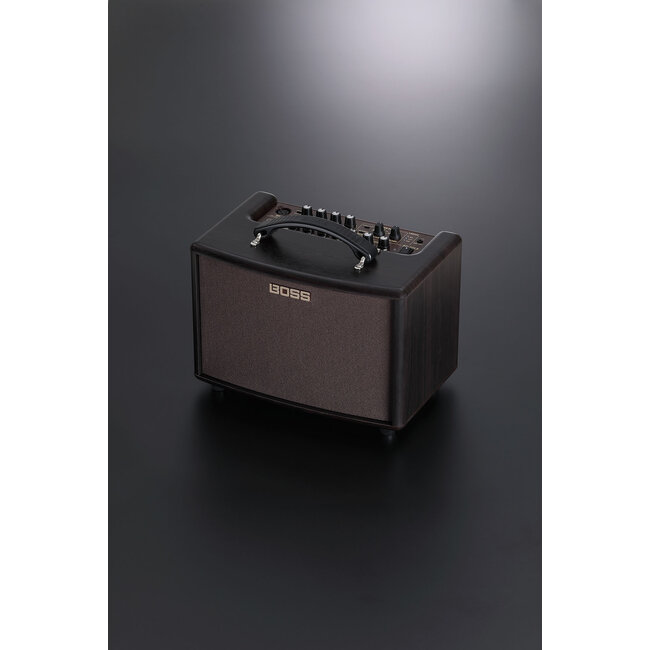

● Small, easy-to-carry design with two custom-designed 5-inch twin-cone speakers
● 10-watt stereo power amp (5 watts x 2)

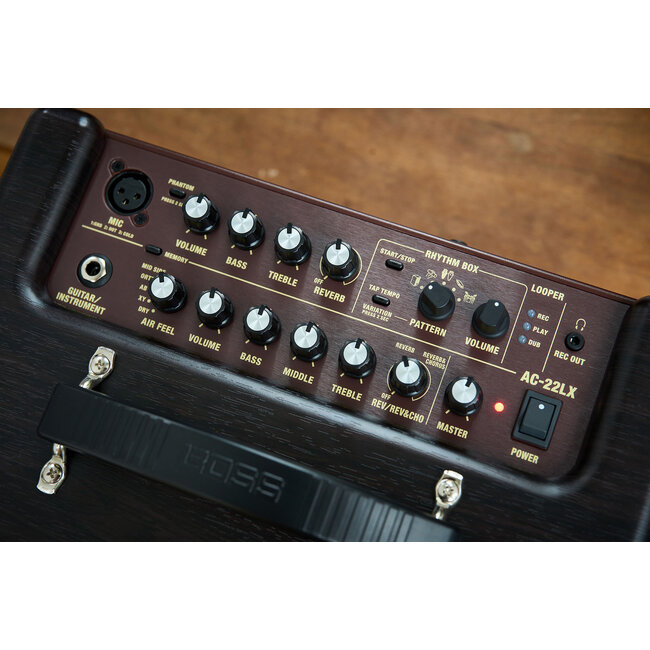

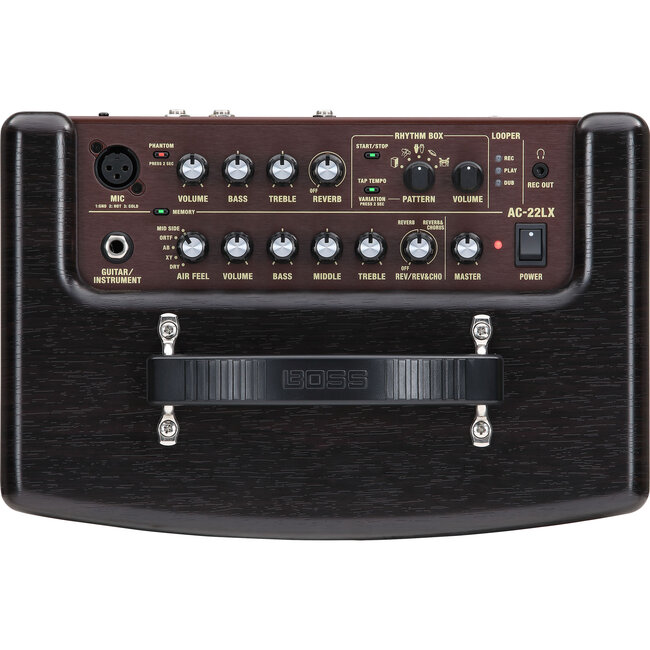

● Guitar/Instrument channel with three-band EQ and dedicated Reverb and Reverb & Chorus effects
● Mic channel with XLR input, phantom power, two-band EQ, and dedicated Reverb effect
● Five Air Feel settings: Dry, XY, AB, ORTF, and Mid-Side
● 15 memories for storing and recalling sound setups
● Onboard Rhythm Box with 15 patterns
● Customize pattern types with 119 selections in the AC-22LX Editor
● Built-in looper (requires optional footswitch)

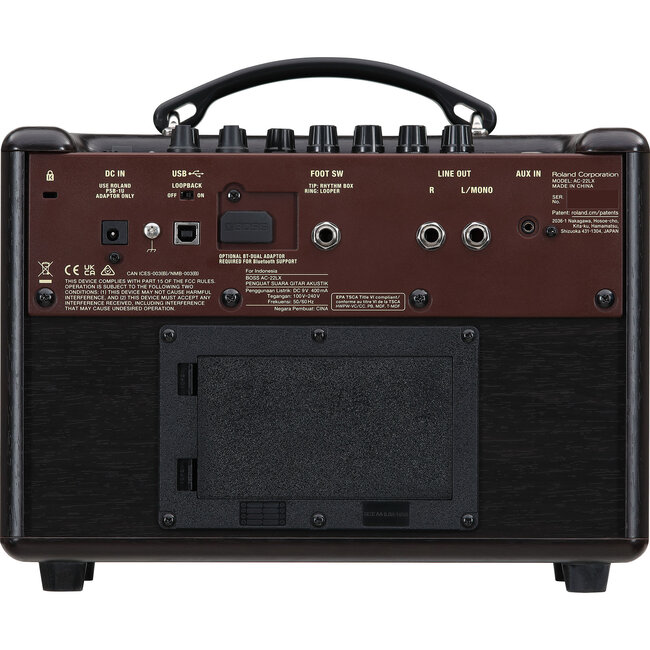

● Stereo line output with Air Feel
● Stereo aux input for music playback
● USB audio interface with Loopback for recording and livestreaming
● Runs on included AC adaptor or eight AA batteries

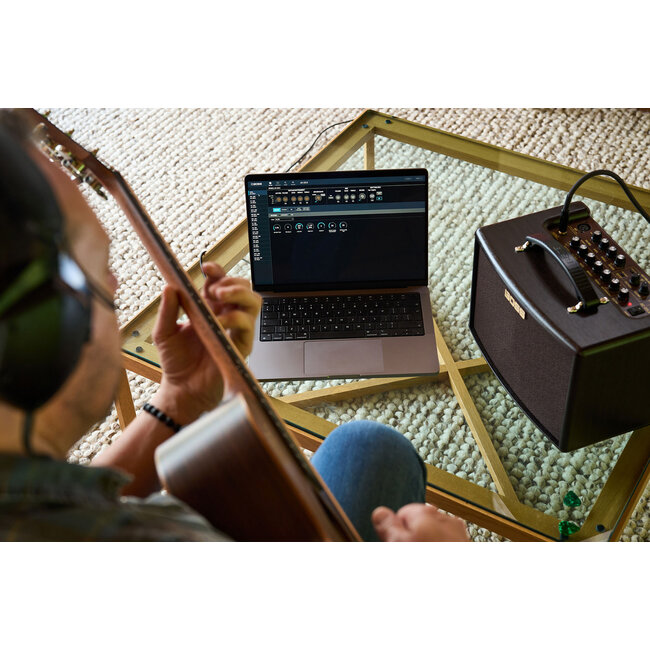

● AC-22LX Editor app (macOS/Windows/iOS/Android) for deep sound editing

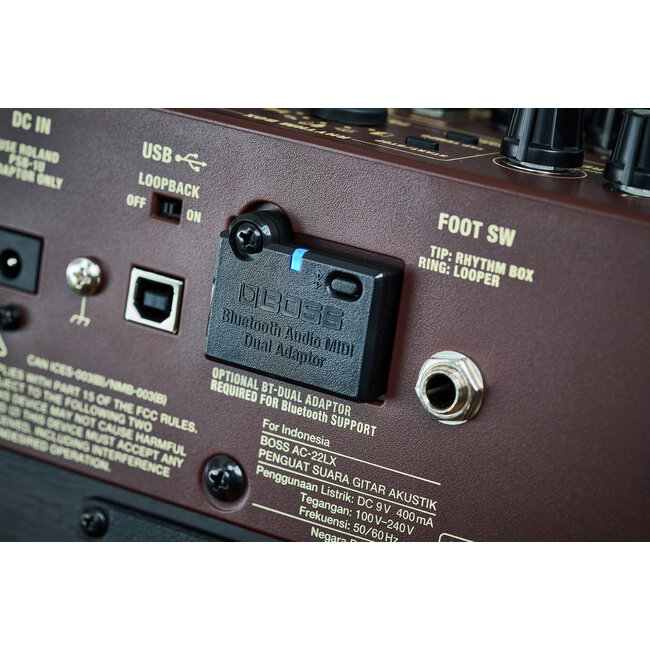

● Optional Bluetooth® Audio MIDI Dual Adaptor (BT-DUAL) for wireless audio playback from a mobile device, customizing sounds with the mobile editor, and more
DESCRIPTION
Immersive stereo acoustic amplifier for guitar and vocals
PRODUCT CODE 425141
SERIALIZED Yes
EAN 4957054519476
UPC 761294519479
IN THE BOX
● Owner’s Manual
● Leaflet USING THE UNIT SAFELY
● AC adaptor
● Power cord
RECOMMENDED ACCESSORIES
● Footswitch: FS-5U, FS-5L, FS-6, FS-7
● Bluetooth Audio MIDI Dual Adaptor: BT-DUAL
● Wireless MIDI Expression Pedal: EV-1-WL
● Wireless Footswitch: FS-1-WL
● Instrument Cables: BIC Series
● Microphone Cables: Roland RMC Series
WEIGHTS & MEASURES
OUTER CARTON 2 Pieces
582 x 352 x 424mm
11.81kg
SINGLE CARTON
386 x 279 x 330mm
5.34kg
PRODUCT
246 (W) x 134 (D) x 63 (H) mm
9-11/16 (W) x 5-9/32 (D) x 2-31/64 (H) inches
1.2kg (2lb 9oz)
