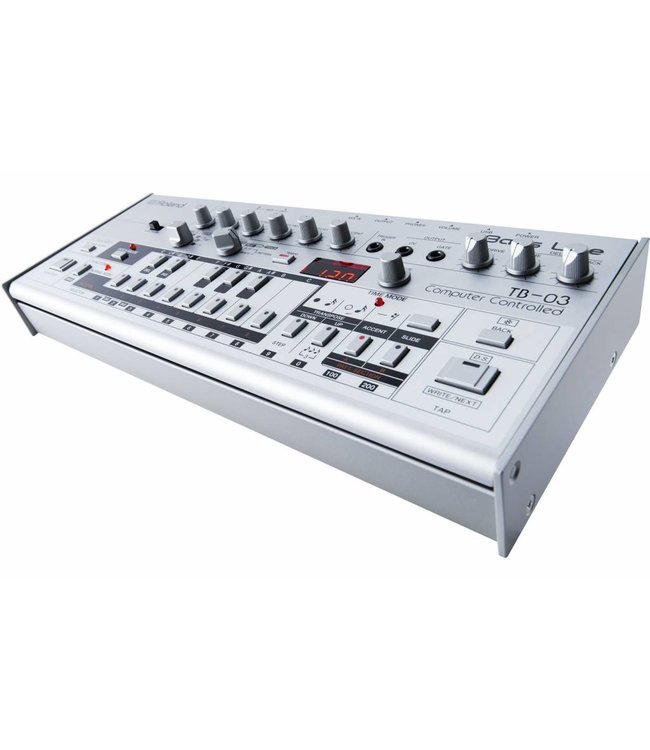

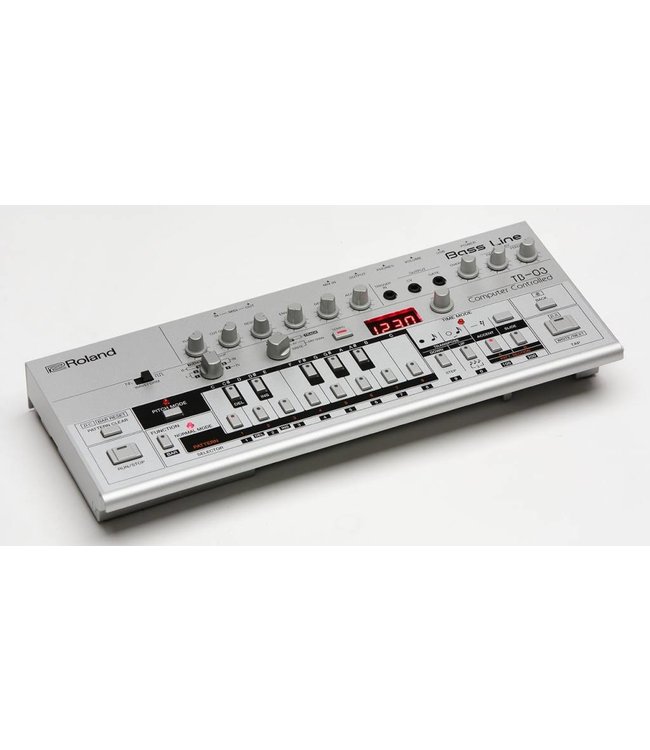

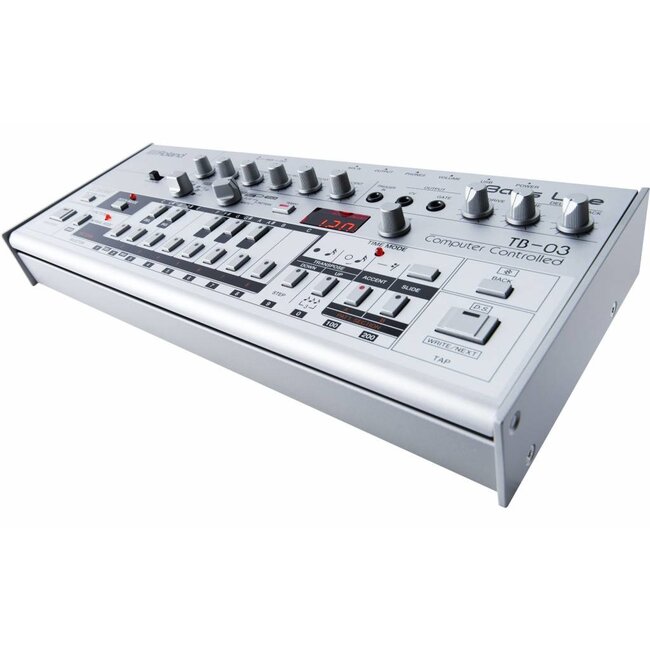

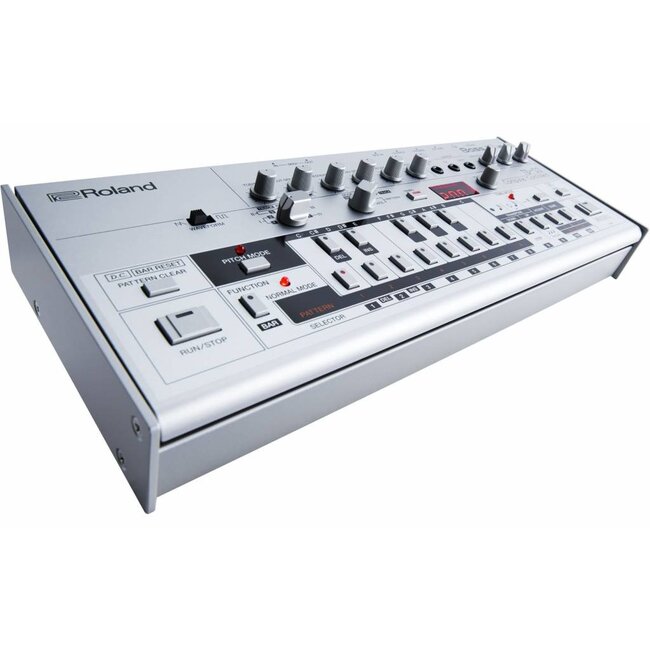

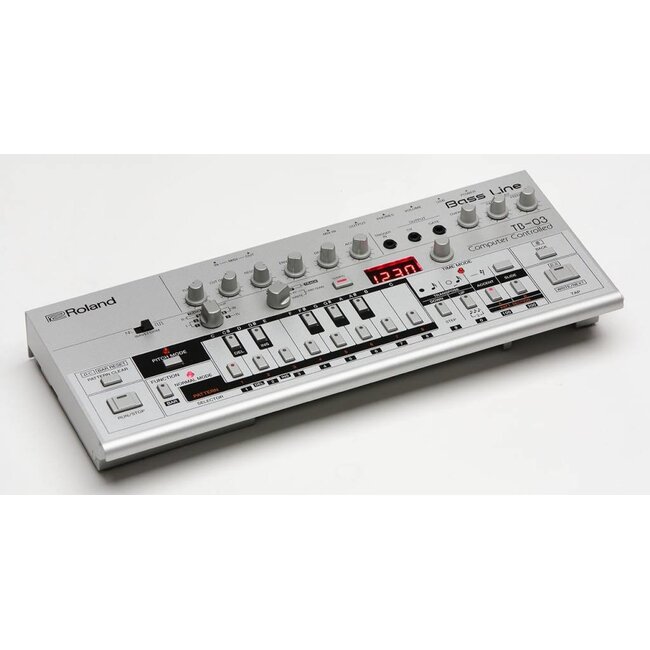

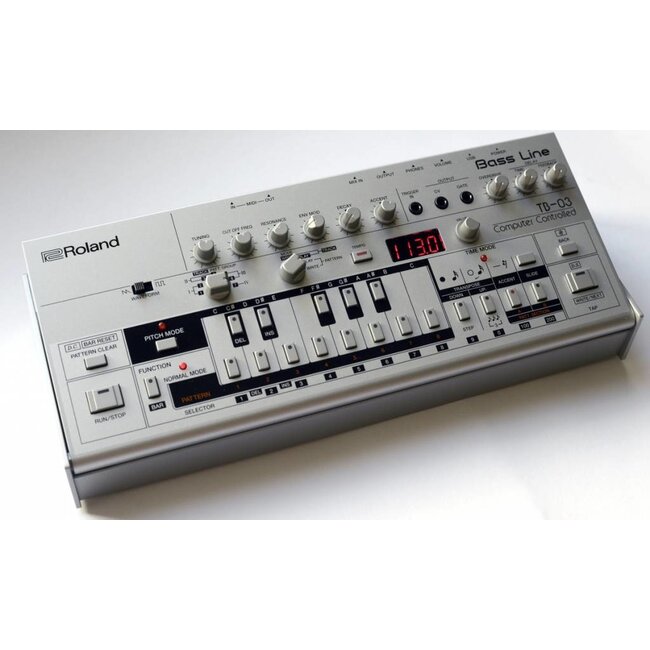

Roland TB-03 Bassline Boutique synthesizer module

general

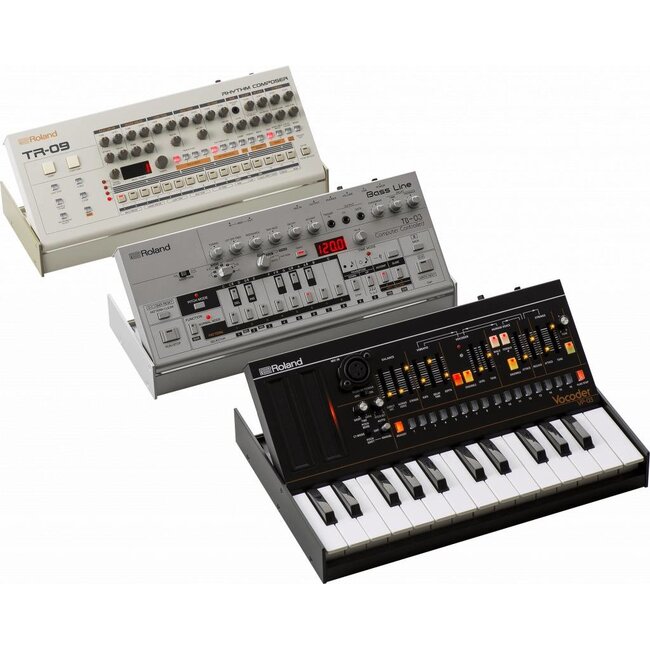

Forget bass line, the Roland TB-303 Bassline Synth produced only fat bass lines! To do this retro scamp honor, Roland offers the TB-03. The TB-03 is a compact module version (without keyboard) associated with Roland Boutique line. Unlike the original version, the TB-03 LED display with up to 4 characters, making advanced program is a lot easier. The range of parameters, including tuning, cutoff, resonance, envelope mod, decay and accent, you control directly with the existing knobs. The base is still formed by a saw-tooth shape or a block, for the most thick-bass synthesizer sounds.

TB-03: versatile bass

To give the waveform extra panache, the device is equipped with overdrive, delay and reverb effects. Besides the pitch and time-write modes, there is a new step mode added with convenient speed control. Roland has also thought of the connections, including a trigger input, MIDI in / out, USB port and CV / Gate terminal, to control all kinds of analog equipment, modular synths and DAWs. Despite the existing keys, the TB-03 is mainly 'played' by the built-in step sequencer. Are you a fan of retro-looking filthy bass lines? Roland TB-03 Bassline Boutique synthesizer module delivers!

Tips or comments about this product

Included: Boutique Dock DK-01 (silver), guide, alkaline batteries (4x).

warranty
This product you will get a 3 year warranty.

product Features

^{Weight (including packaging.)}	1.0 kg
^{Size (including packaging.)}	36.0 x 18.0 x 8.0 cm

^{sound Source}	virtual analog
^{Numeric keypad}	13
^{Arpeggiator / sequencer}	no
^{19-inch rack format}	No
^{shape synthesizer}	desktop module
^{type keys}	mini keys
^{inputs synthesizer}	no
^{outputs synthesizer}	line out jack, headphone
^{MIDI and CV / Gate}	MIDI in, MIDI out, MIDI over USB, CV / gate out
^Control	no
^{computer Integration}	no

Product specifications

Roland TB-03 Bassline Boutique
Synthesizer Module

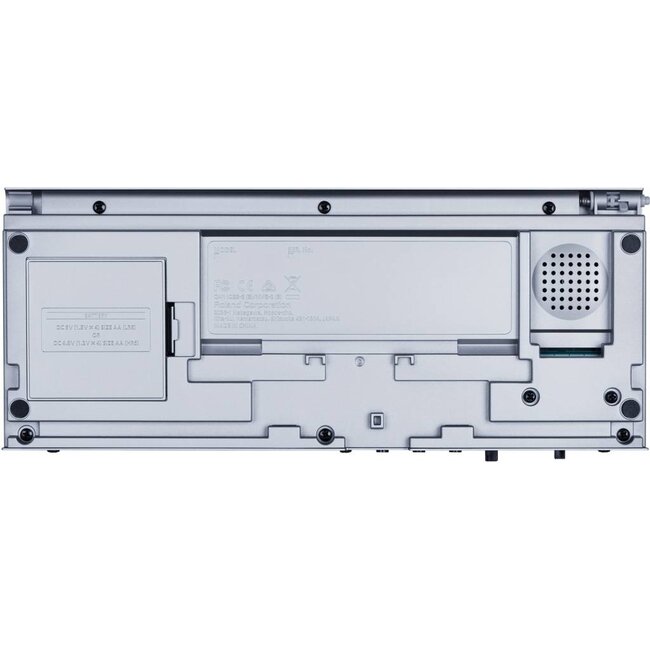

equipped with built-in mini speaker
equipped with 13 mini-keys (one octave)

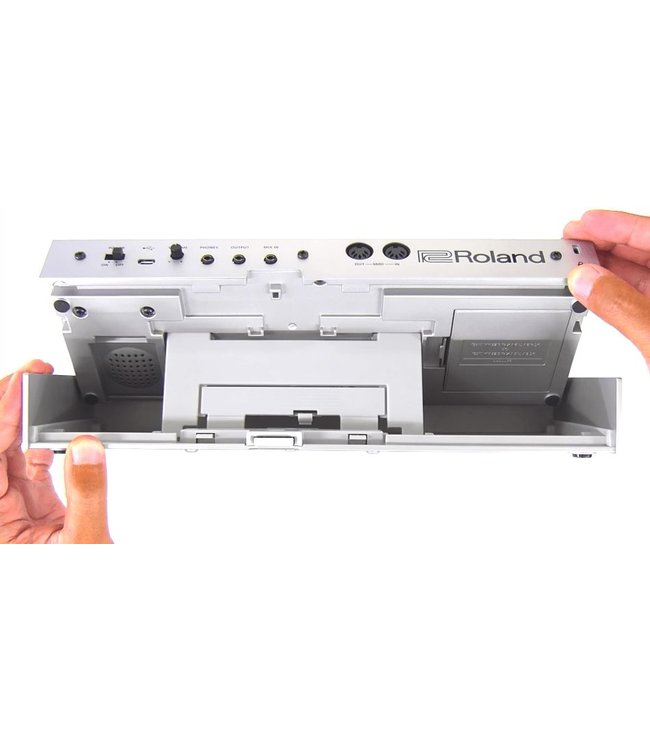

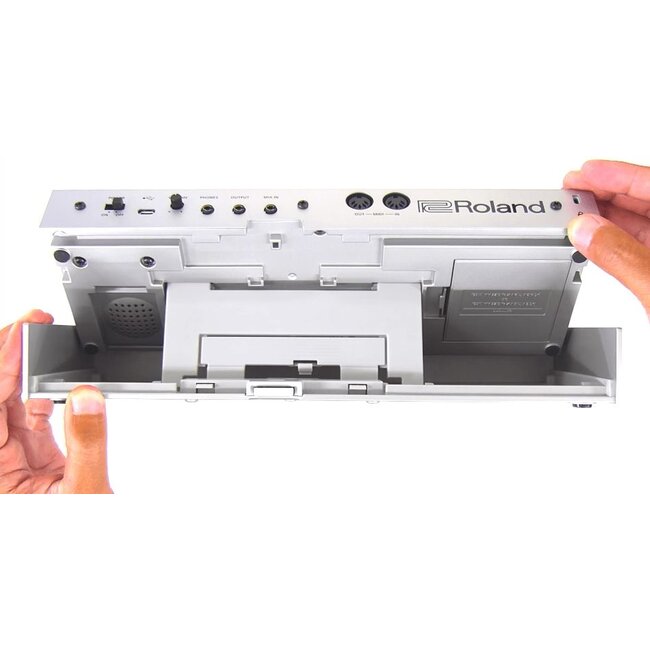

Built standard with three tilt positions

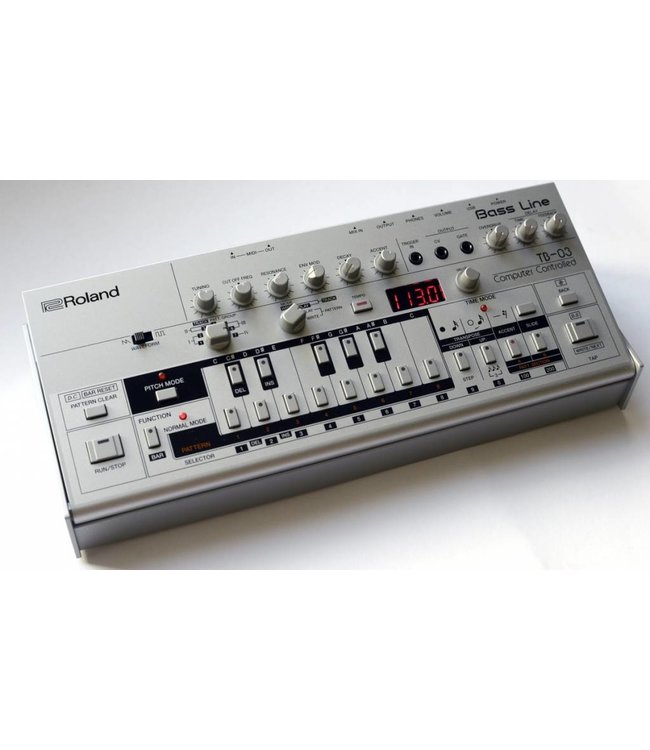

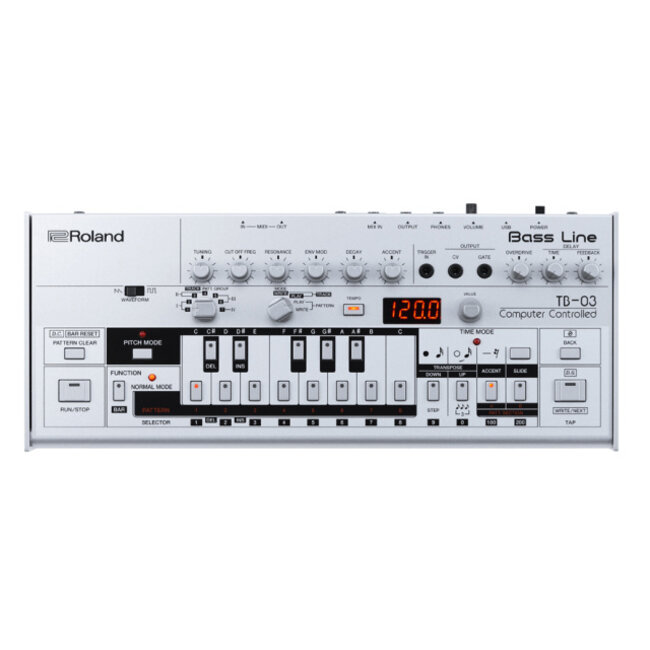

controllers:
- volume button
- tuning knob
- cut off freq button
- resonance button
- env mod button
- Decay knob
- accent-button
- overdrive button
- delay time knob
- delay feedback button
- Waveform switch
- track patt. group selector
- mode selector
- Tempo button
- Value button
- pattern clear button
- run / stop button
- Pitch Mode button
- function button
- mode button
- transpose up / down buttons
- accent-button
- Slide button
- back button
- tap button
effects: overdrive (overdrive, distortion), delay (tape echo, digital delay, reverb)
Indicators: 7 segmensten, 4 characters, pitch mode LED, normal mode LED mode LED

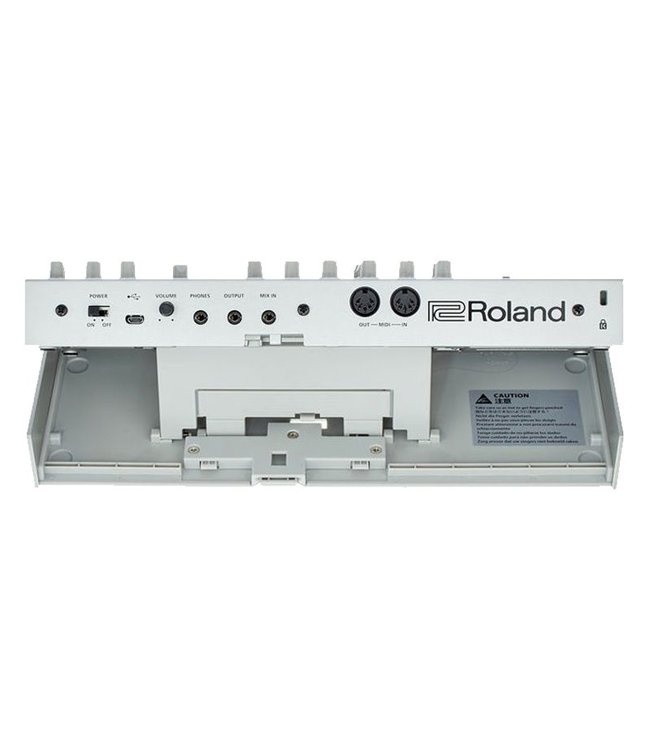

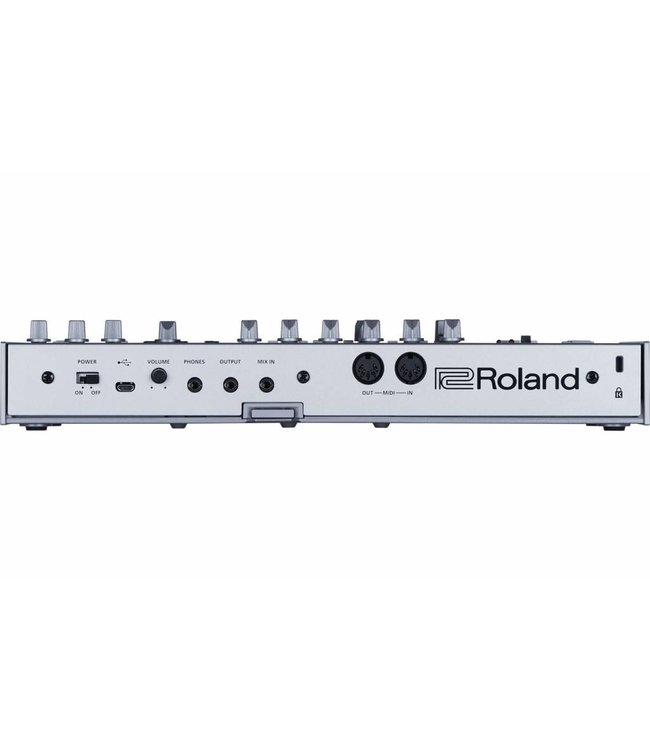

connectors:
- Trigger in: 3.5 mm mono jack
- Resumes Output: 3.5 mm mono jack
- Gate Output: 6.3 mm mono jack
- phones jack: 3.5 mm stereo jack
- output jack: 3.5 mm stereo jack
- mix in 3.5 mm stereo jack
- MIDI (IN, OUT) connectors
- USB port: Micro-B type (audio, MIDI)

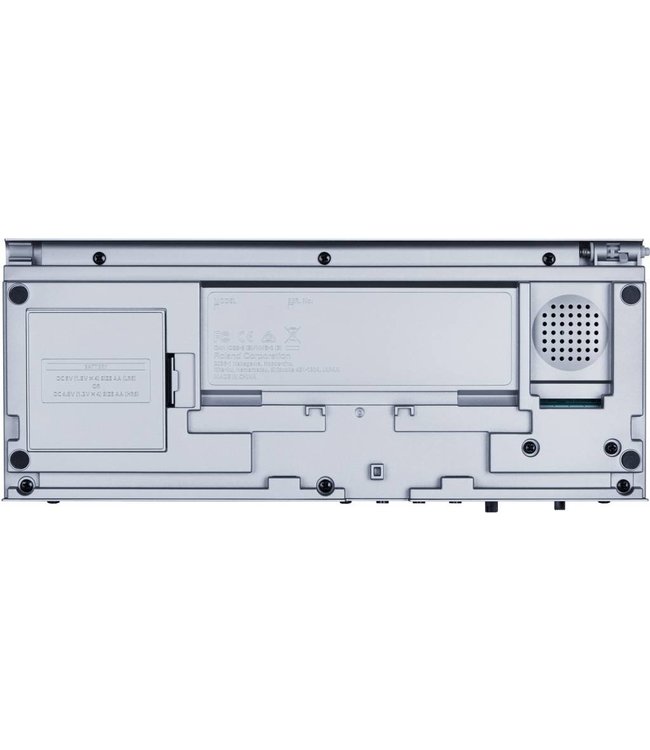

power:
- Rechargeable Ni-MH battery (AA, HR6) x 4 (not included)
- Alkaline battery (AA, LR6) x 4 (included)
- USB bus power
power consumption: 500mA (USB bus power)
battery life: about 5 hours
Dimensions (LxWxH): 308 x 130 x 52 mm (12-1 / 8 x 5-1 / 8 x 2-1 / 16 inch)
weight (including battery): 940 g (2 lbs)
Included: Boutique Dock DK-01 (silver), guide, alkaline batteries (4x)
