The Roland SPD::ONE PERCUSSION is a new type of digital percussion pad, one that allows any musician to add authentic percussion sounds to their performances. It contains 22 realistic percussion sounds, including snare and kick drums, hi-hats, cymbals, shakers, tambourines, and more, and you can even import your own original audio data into one of the 12 internal sound banks. Once you’re ready to go, the SPD::ONE PERCUSSION’s robust-yet-sensitive pad can be played with sticks, hands, or feet, and the trigger threshold settings are easily adjusted with intuitive controls.
Powered by batteries or AC, the portable SPD::ONE PERCUSSION can be used on the floor or a tabletop, or mounted to any rig or drum setup with the included adapter. Operation is simple, even for those musicians who are not technical; just by using four knobs on the control panel, you can change the sound, volume, balance, and more. Whether you’re a drummer, percussion player, guitarist, DJ, or vocalist, the SPD::ONE PERCUSSION is a simple and flexible way to expand your sound palette and invigorate your performances.
SpecificationsInstruments22User SampleNumber of User Sample: 1
Sound Length: 5seconds
Data Format: WAV (44.1 kHz, 16 bits, Mono/Stereo)ControlsINST knob
[TUNING] knob
[FX] knob
[VOLUME] knob
[INST VARIATION] button
[THRES] knob
[SENS] knob

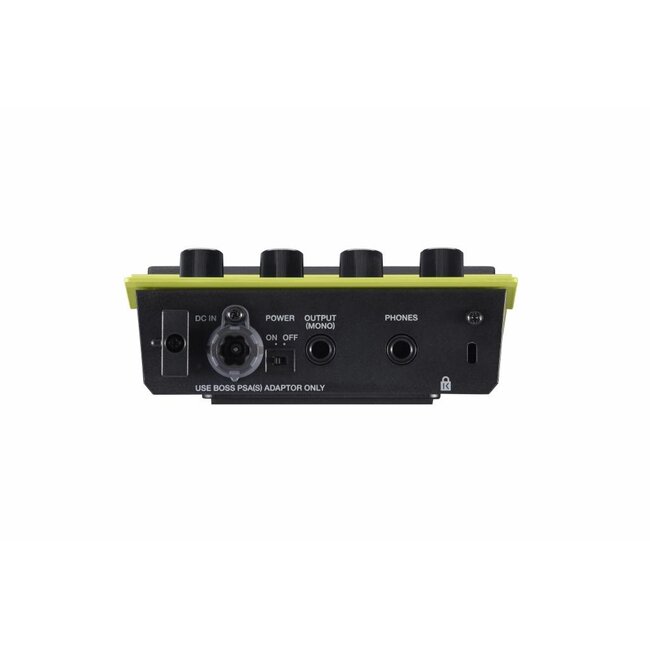

[POWER] switchEffectsReverb, DelayIndicatorTRIG IndicatorConnectorsOUTPUT (MONO) jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
USB port: Micro-B type
DC IN jackUSBMIDI
Mass Storage ClassPower SupplyRechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC adaptor (DC9V)Current Draw300 mA (DC IN)
*Expected battery life under continuous use
Rechargeable Ni-MH battery (AA, HR6):
Normal use: Approx. 7 hours
Maximum load use: Approx. 4 hours
Alkaline battery (AA, LR6):
Normal use: Approx. 6 hours
Maximum load use: Approx. 3 hours
*These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's manual
Leaflet "USING THE UNIT SAFELY"
Attachment
Attachment screws x 2
Holder mounting screws (bolt x 1, nut x 1, washers x 2)
*Acceptable rod diameters: 8.0–12.7 mm (3/8–1/2 inches)
Alkaline batteries (AA, LR6) x 4Options (sold separately)AC adaptor: PSA-S series
Personal drum monitor: PM-10
Headphones: RH-300VSize and WeightWidth140 mm
5-9/16 inchesDepth160 mm
6-5/16 inchesHeight56 mm
2-1/4 inchesWeight900 g
2 lbs
