The new Version 2 system upgrade expands the SPD-30’s onboard kit and phrase libraries, and add powerful new features and functions. Roland’s original Octapad profoundly changed the landscape of electronic percussion. The size of a briefcase, the Octapad offered drummers and percussionists the equivalent of an entire electronic rig in one self-contained unit — a new level of convenience and expression. Today, decades later, an exciting new chapter in Octapad history begins. The SPD-30 blends the world’s most essential sounds with the latest triggering technology in a road-tough package that’s ready for the most demanding performers.

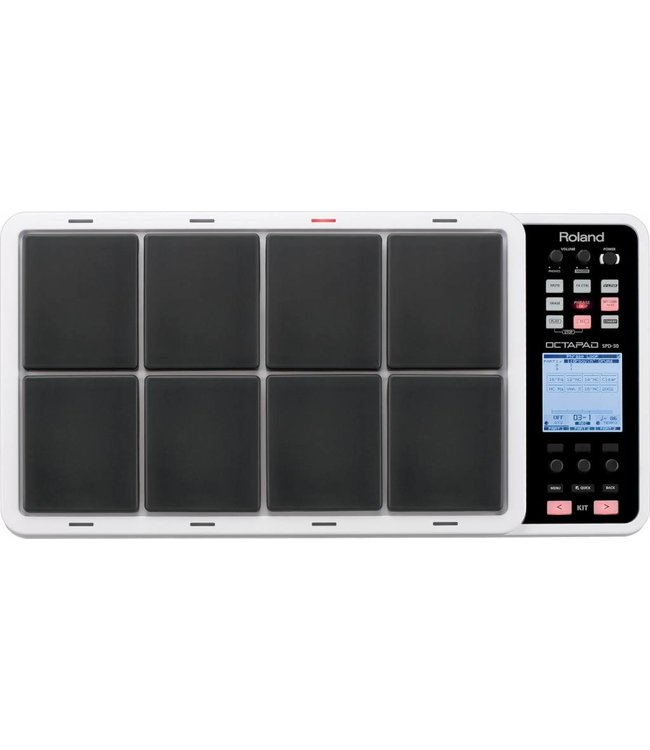

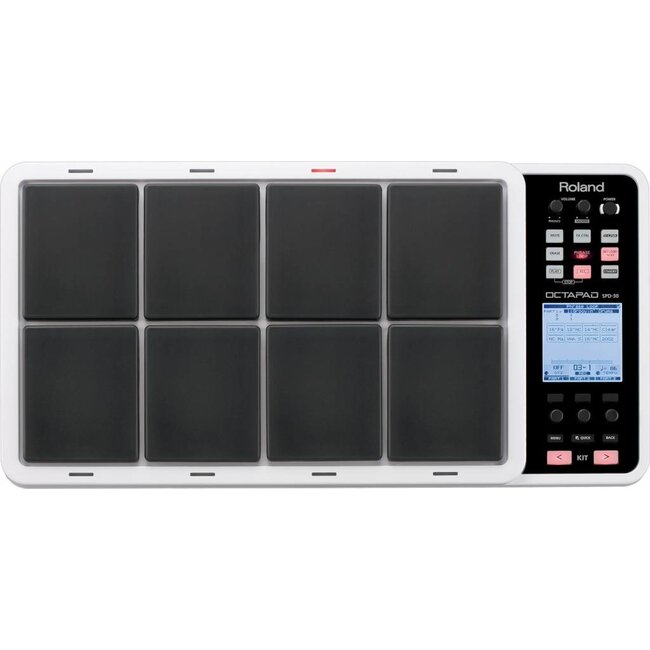

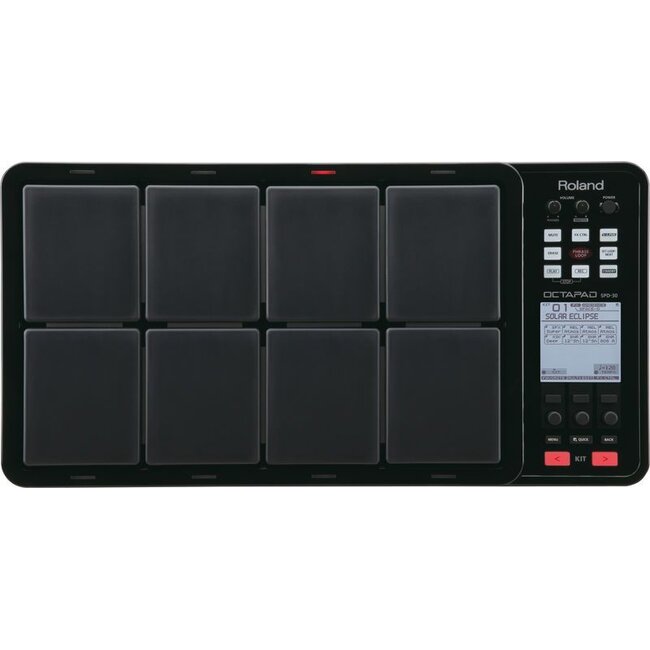

PadsBuilt-in Pads: 8
* Four external trigger inputs are provided, allowing you to connect Pads.Instruments670Kits50Kit Chain8 chains (20 steps per chain)Instrument ParametersTuning
Muffling
Soft Attack
Tone Color
Pitch Sweep
Volume
Pan
ReverseEffect TypesAmbience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)Phrase LoopPhrases: 50
Parts: 3
Tempo: 40 to 260
Resolution: 480 ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: approx. 10,000 NotesDisplay160 x 160 dots Graphic Type LCD (Backlit LCD)

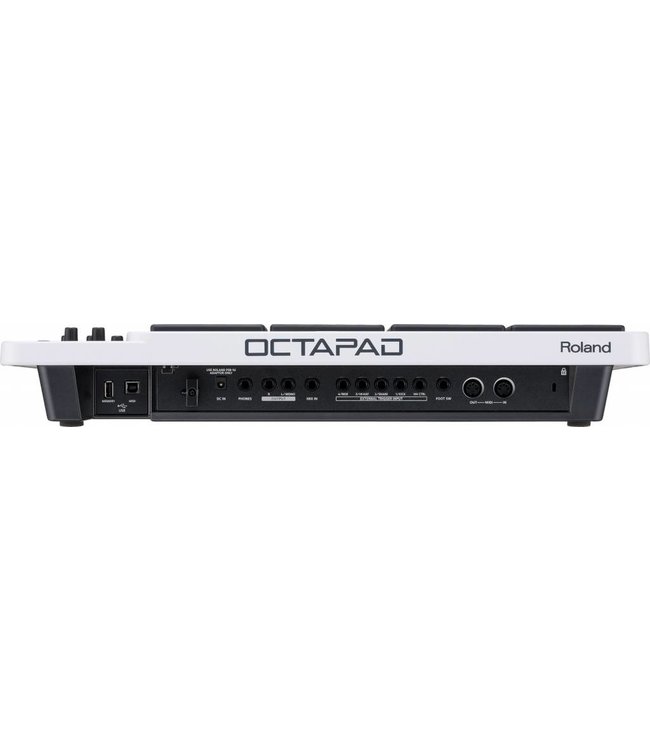

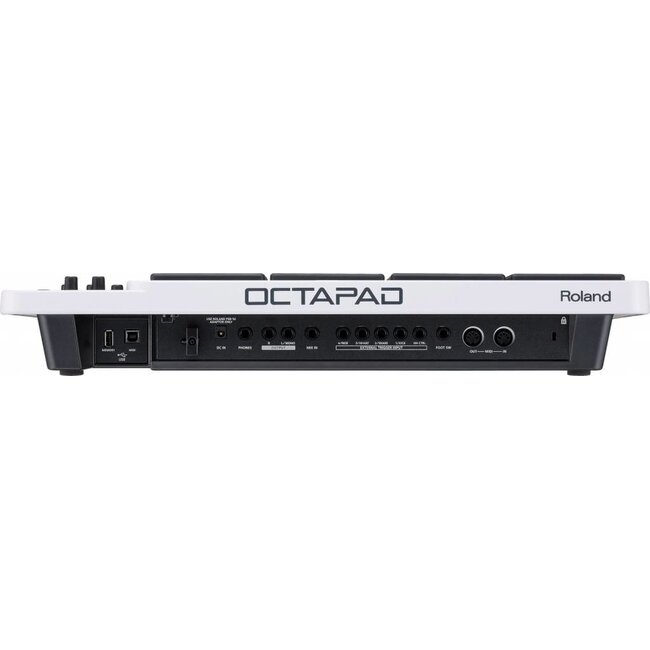

Pad Status Illumination x 8 (LED)ConnectorsPHONES Jack (Stereo 1/4 inch phone type)
OUTPUT Jacks (L (MONO), R) (1/4 inch phone type)
MIX IN Jack (Stereo 1/4 inch phone type)
EXTERNAL TRIGGER INPUT Jacks x 4
HH CTRL Jack, FOOT SW Jack (1/4 inch TRS phone type)
MIDI Connectors (IN, OUT)
USB MEMORY Connector (for USB Memory)
USB MIDI Connector (for USB MIDI)Output Impedance1.0 k ohmsPower SupplyAC Adaptor (DC 9 V)Current Draw600 mAAccessoriesOwner's Manual
AC Adaptor (PSB-1U)
Screws (M5 x 12 mm) x 4OptionsPads (PD series, PDX series, BT-1)
Cymbals (CY series)
Kick Triggers (KD series)
Hi-Hats (VH-11)
Hi-Hat Control Pedal (FD series)

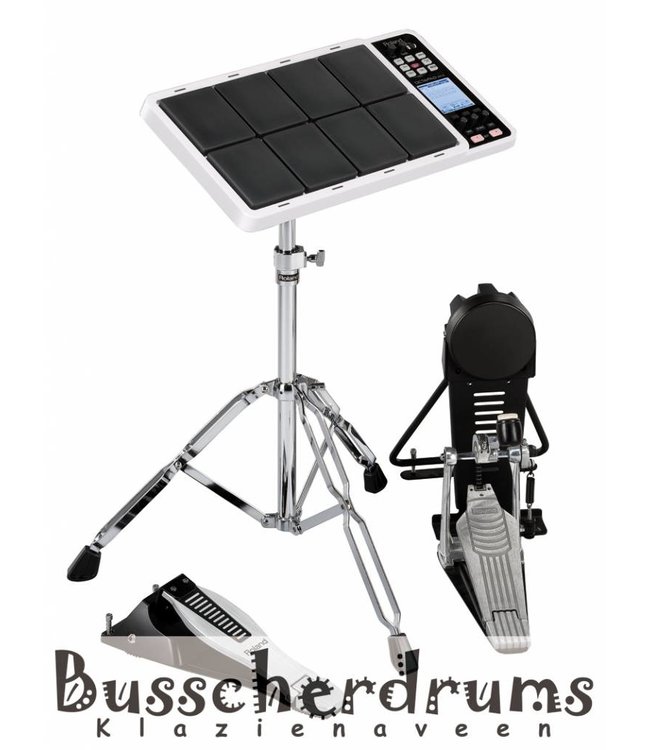

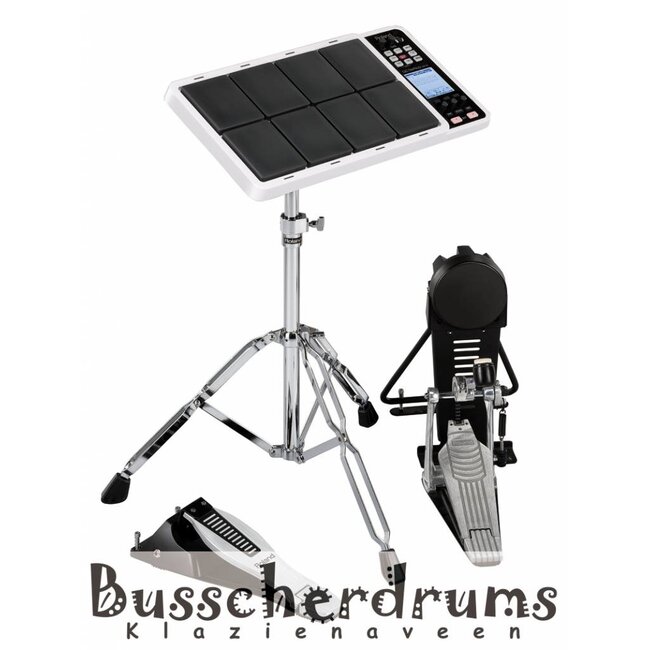

Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
Pedal Switch (DP-2)
Foot Switch (FS-5U, FS-6)
Personal Drum Monitor: PM-10, PM-30
V-Drums Accessory Package: DAP-3
V-Drums Mat: TDM-10
USB memory
* Use USB memory sold by Roland. We cannot guarantee operation if other
products are used.Size and WeightWidth541 mm
21-5/16 inchesDepth272 mm
10-3/4 inchesHeight88 mm
3-1/2 inchesWeight3.8 kg
8 lbs. 7 oz.Weight exclude AC Adaptor.In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
