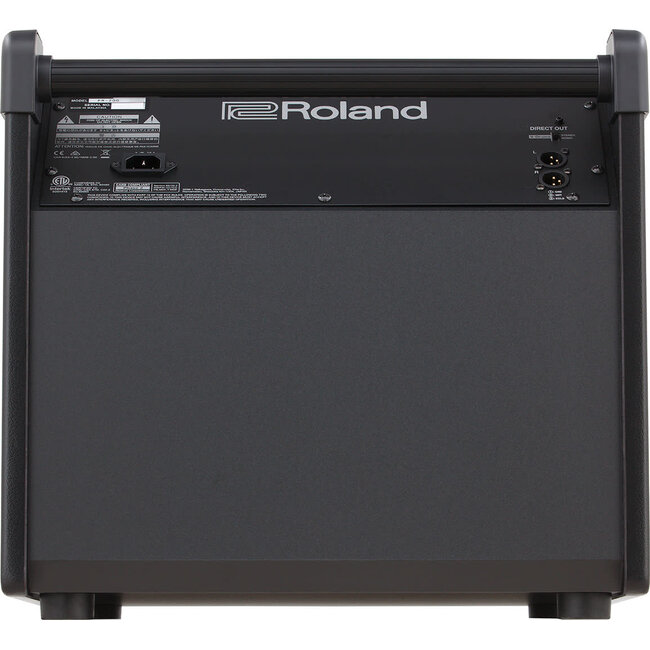

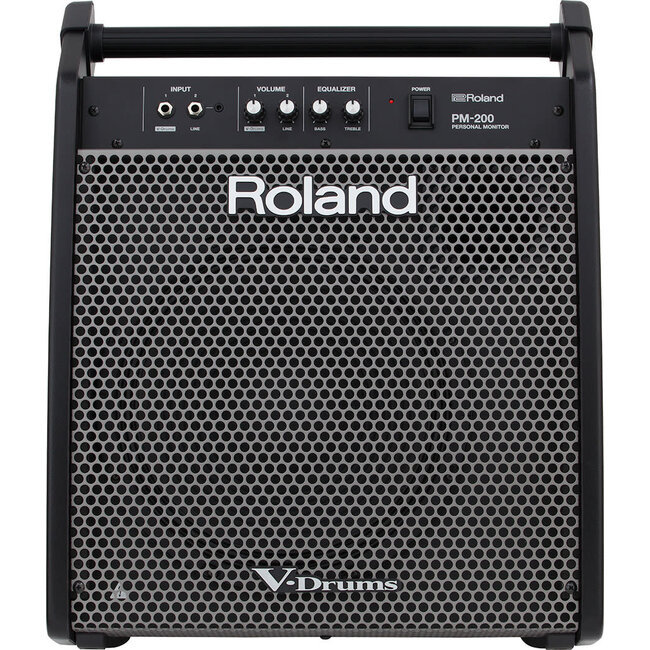

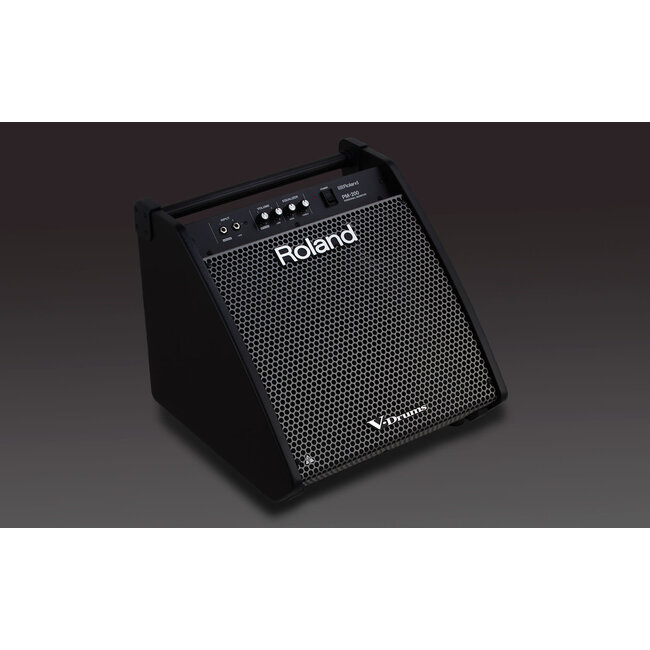

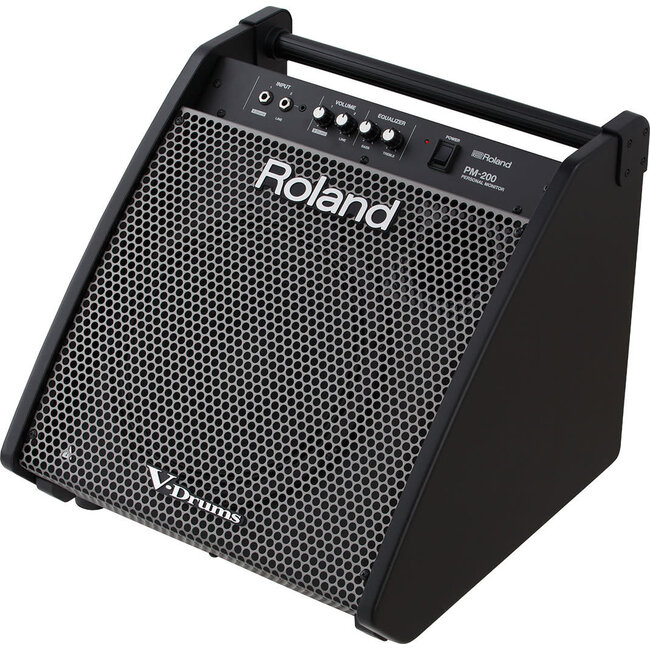

The PM-200 delivers rich, dynamic sound in one sleek package. It is the ultimate monitor solution for Roland V-Drums. The PM-200 boasts a power output of 180 watts, and features a custom-built speaker system that reproduces the full frequency range. Together with the robust housing, the speakers are optimized for the famously expressive sound and response of V-Drums. And with an integrated mixer and direct output capabilities, it's easy to connect other devices to it: at home or on stage.
SPECIFICATIONS
Rated Power Output 180 W Nominal Input Level V-Drums INPUT: -6 dBu (10 k ohms)
LINE INPUT: -6 dBu (10 k ohms) Speaker 30 cm (12 inches) Woofer x 1, Horn Tweeter x 1 Controls POWER switch
V-Drums VOLUME knob
LINE INPUT VOLUME knob
BASS knob
TREBLE knob
DIRECT OUT switch
Indicators POWER Connectors V-Drums
INPUT jack: Stereo 1/4-inch phone type
LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
DIRECT OUT connector: XLR type
AC IN jackPower Consumption64 WAccessoriesOwner's manual
power cord
SIZE AND WEIGHT Width458 mm
18-1/16 inches Depth 469mm
18-1/2 inches Height 420mm
16-9/16 inches Weight 21.0 kg
46 lbs 5 oz* 0 dBu = 0.775 Vrms*
The specifications are subject to change without notice.
