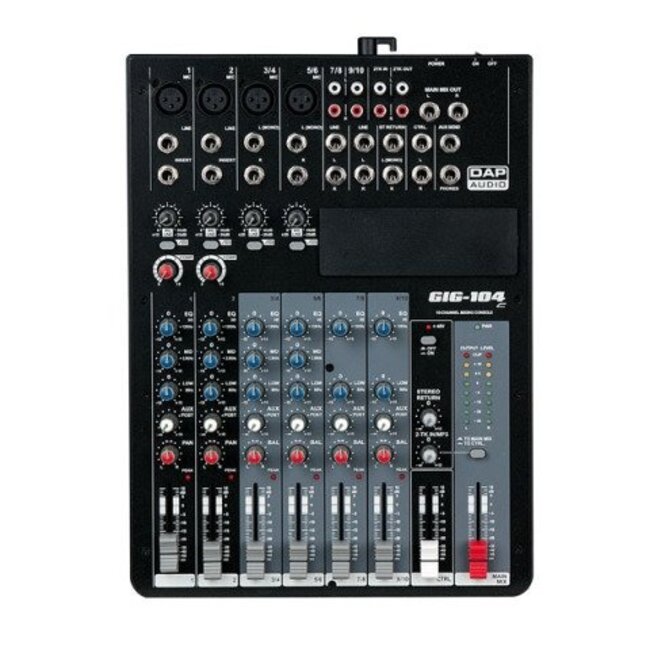

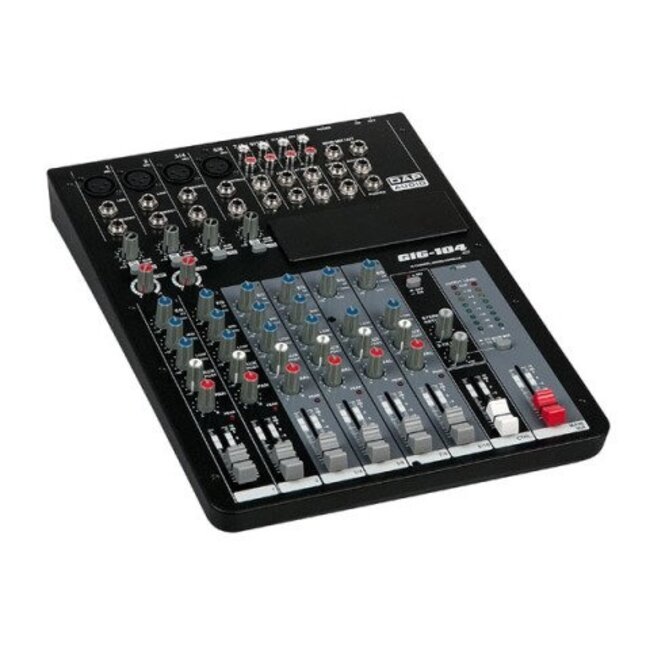

The GIG-104c Mixing Console is packed with features That can not be found in other consoles or it's size: 4 mono (provided with ultra low noise microphone pre-amplifiers and Phantom Power at +48 Volt) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as first auxiliary control, highly accurate 8-segment bar graph meters and 2-track inputs assignable to main mix, control room / phones or group outputs.
Specifications
mono Channels
Mic Input: XLR balanced
Line Input: 1/4 TRS balanced
Freq Response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD = N): <0.03% @ 0dB, 22Hz ~ 22kHz
Gain Range: 50dB
Input Sensitivity: -35dBu ~ + 15dBu
LOW Cut: 75Hz
SNR <-100dBr
Phantom Power: + 48V switchable
stereo Channels
Mic Input: XLR balanced
Line input 1 / 4- TRS / RCA unbalanced
Freq Response: 10Hz ~ 55kHz, +/- 3dB
Distortion (THD = N): <0.03% @ 0dB, 22Hz ~ 22kHz
Gain Range: 50dB
Input Sensitivity: -20dBu ~ + 20dBu
LOW Cut: 75Hz
SNR <-100dBr
Phantom Power: + 48V switchable
Channels EQ
High: +/- 15dB @ 12kHz
Mid: +/- 15dB @ 2,5kHz
Low: +/- 15dB @ 80Hz
Impe Dances
Microphone Input: 1,8K Ohm
Other inputs:> 10K ohms
Tape output: 1K ohm
All other outputs: 120 Ohm
Power supply: 100- 240V AC 50Hz / 60Hz
Power consumption: 40 Watts
Measurements: 343 x 254 x 63mm
Weight: 2.48 Kg
