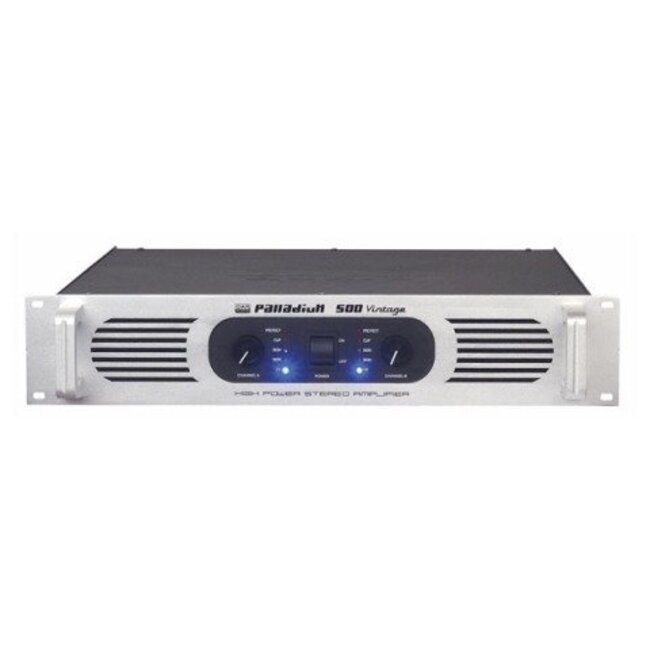

The Palladium amplifier range HAS proven itself for many years. They give real power and save to your speakers. With already more than 12 years of production experience and the palladium is equipped with the best amplification and protection circuitry. They are available in the original vintage look silver or black housing. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.
Output Power, 1000 Hz, THD + N at 1%
Both Channels Driven:
Stereo mode: 8 Ohm: 2x 180 Watt RMS
4 Ohm: 2 x 270 Watts RMS
2 Ohm: Not Allowed
Bridge mode: 8 Ohm: 540 Watts RMS
4 Ohm: Not Allowed
Frequency Response: 20 - 45.000 Hz -1 dB
THD + N <0.05%
Intermodul. Distortion: <0.01%
Damping Factor at 8 Ohm:> 250
Slew Rate:> 40 V / mS
Input CMRR:> 60 dB
Cross Talk 20 - 20.000 Hz:> 60 dB
Signal to Noise Ratio:> 105 dB A-weighted
Input Sensitivity: 1 V ~ +2.2 dBu
Max. Input Voltage: +22 dBu
Input Impedance: 20 Ohm Balanced
10 ohm Unbalanced
Protection: Clip Limiter (Fixed)
Short Circuit
input Overload
output Overload
DC Voltage
high Temperature
Output Modes (Select.): Stereo / Parallel / Bridge
Cooling: Dual Speed Fan
Airflow: Front to Back

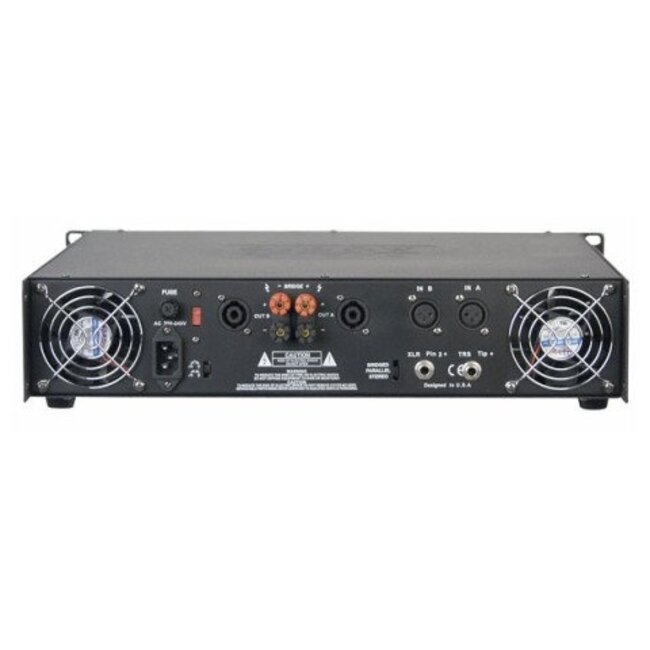

Input / Link Connector: XLR / Jack
Output Connector: 2x Speakon,
2 Pair Bindings Posts
Ground Lift Switch: Yes
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 11,78 kg
Power Supply: 200-240 VAC, 50 Hz
Main Fuse: 6.3AT, 5 x 20 mm
Power consump. (2 x 4 ohm): 850 Watt
