• Affordable and reliable power
• Over 12 years of proven quality
• Advanced protection circuitry
• Natural sound quality
The Palladium amplifier range HAS proven itself for many years. They give real power and save to your speakers. With already more than 12 years of production experience and the palladium is equipped with the best amplification and protection circuitry. They are available in the original vintage look silver or black housing. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.
Specifications
Stereo mode: 2 x 150 Watts RMS - 8 Ohm
2 x 225 Watts RMS - 4 Ohm
Bridged mode: 400 Watts RMS - 8 Ohm
Freq. Response: 20 Hz -20 kHz + 0.1 /
- 3 dB (1W / 8 Ohm)
THD into 4 ohms, 1 kHz: <0.05% at 200W
SMPER IMD: <0.01% at 100W, into
(60 Hz and 7 kHz)
Slew Rate: 40V / mS
Damping factor: 300: 1.1 kHz at 8 ohms
Input CMRR (at 1 kHz):> 60 dB
Voltage Gain: 50 x standard
Input Sens. (At 8 ohms): 0.775V for rated power
Input Impedance: 20 kilo-ohm, balanced
10 kilo-ohm, unbalanced
Hum and Noise: -103 dB
Crosstalk: <60 dB

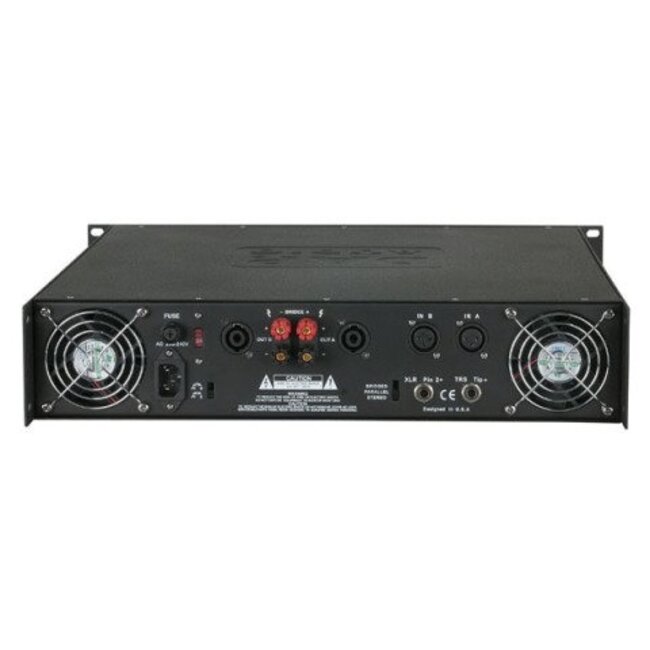

Connectors (per ch.): Female XLR (pin 2+)
TRS (tip +), 5-way Output
binding post
Power Supply: 230 V / 50-60 Hz
Max. Curr. Draw 220: 5 A
Cooling 2 variable speed DC fans
Controls: 2 front attenuators,
rear panel
signal ground lift jumper
Indicators (per ch.): PROTECT LED, CLIP LED,
SIGNAL LED, POWER LED
Protection: Temperature, DC,
uiltra sub
Short circuit
IGM, output
Dimensions (LxWxH): 483 x 430 x 89 mm
Net Weight: 11,32 kg
