Specifications

Sample Rate 48 kHz

AD Conversion 32 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion 32 bits

Memories Guitar mode: 30
Bass mode: 30 Nominal Input Level

INPUT: -10 dBu

Input Impedance INPUT: 1 M ohm

Maximum Output Level PHONES: 30 mW + 30 mW

Output Impedance PHONES: 4.7 ohms

Recommended Load Impedance PHONES: 16 ohms or greater

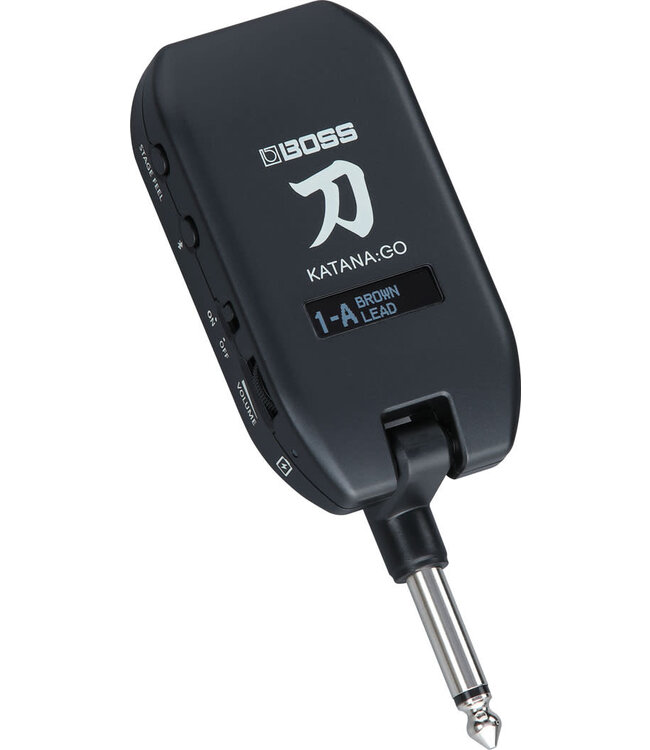

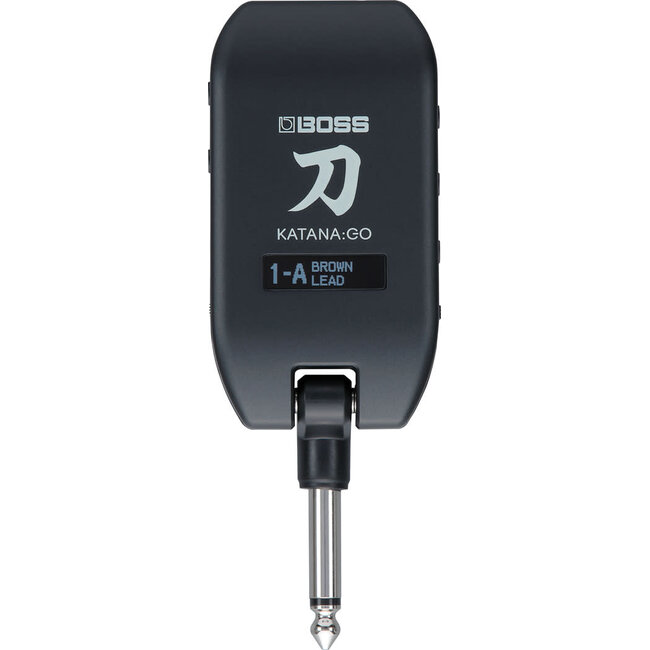

Display Graphic OLED display (128 x 32 dots)

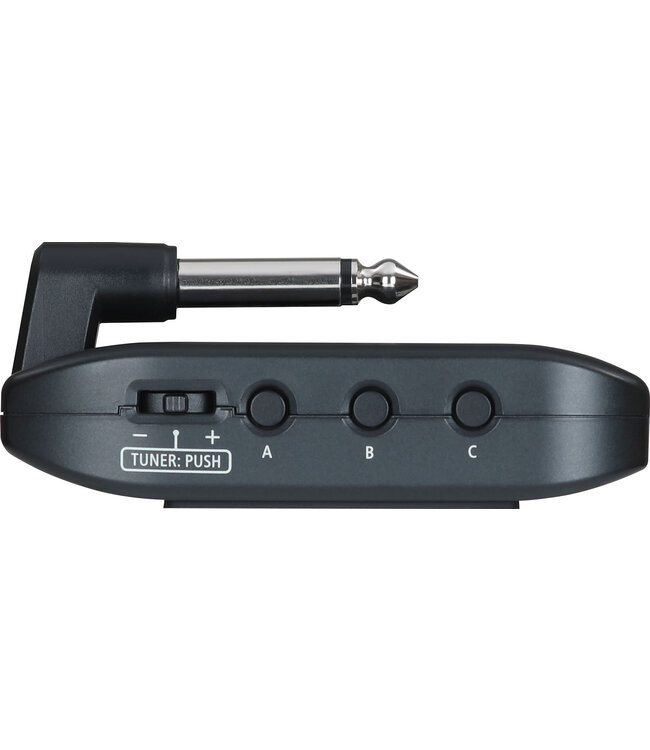

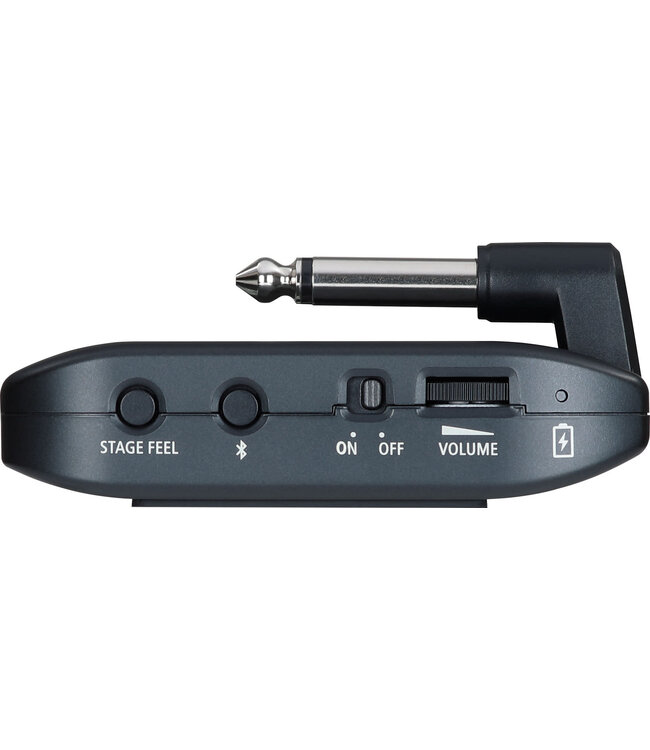

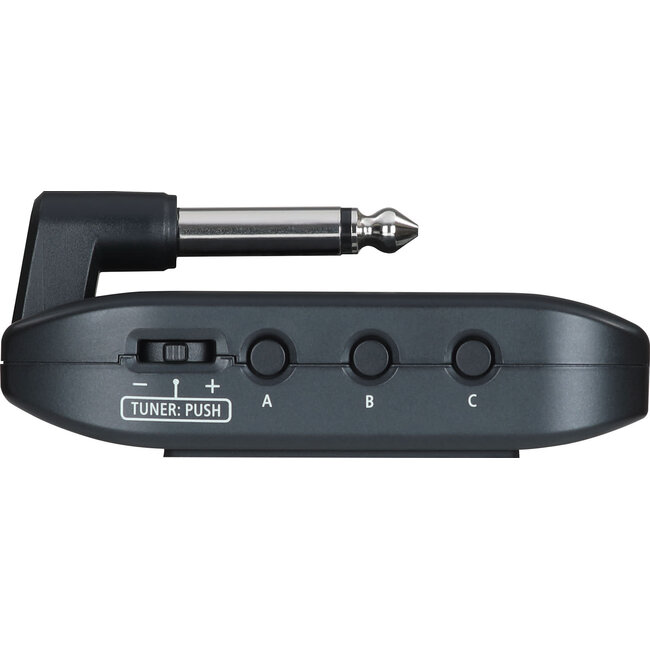

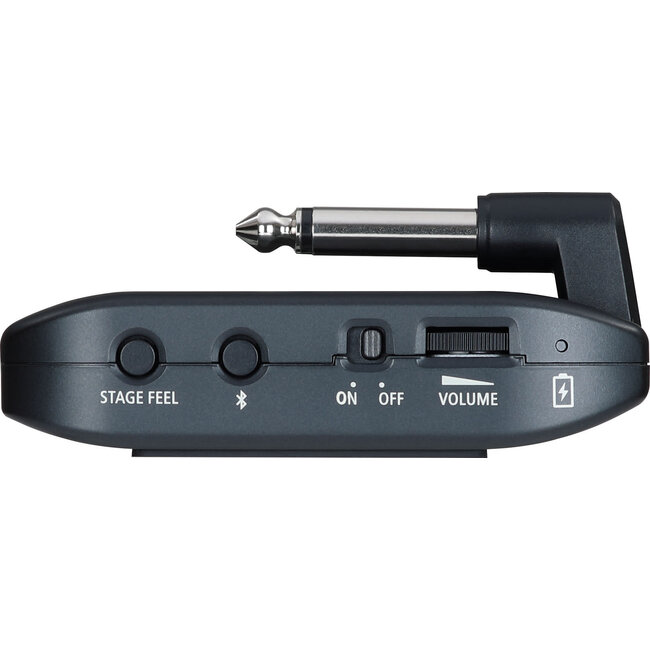

Controls Master volume POWER switch A button B button C button Bluetooth(R) button
STAGE FEEL button Multi-function button

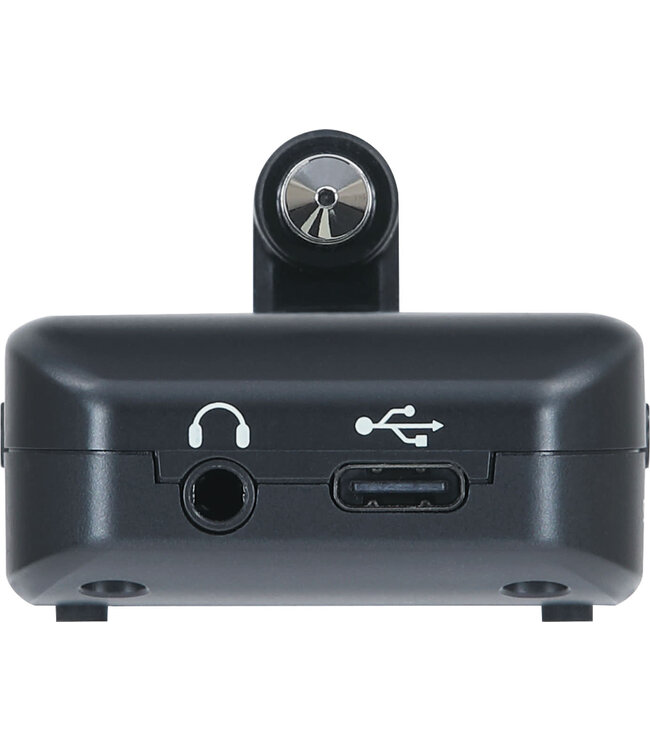

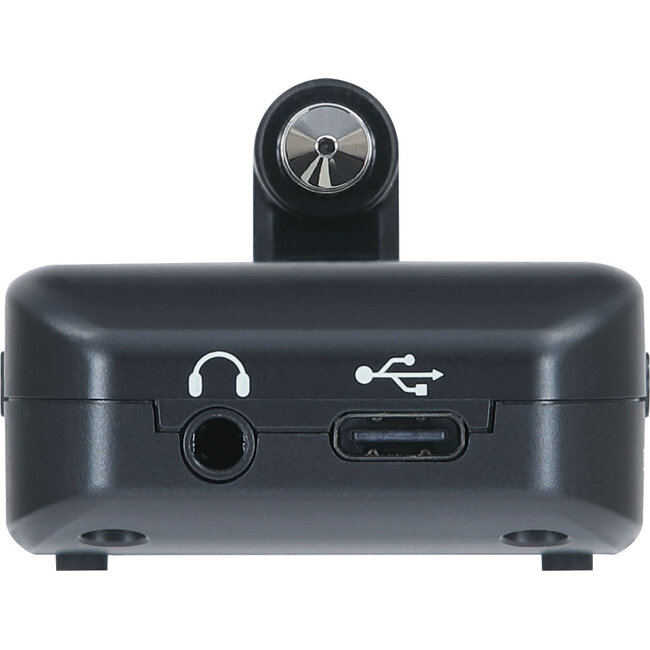

Connectors

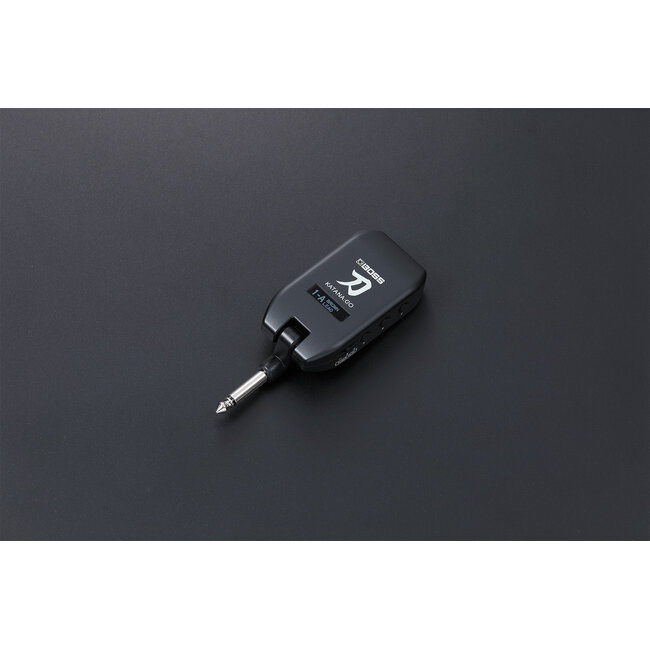

Input plug: 1/4-inch phone type
PHONES jack: Stereo miniature phone type
USB port: USB Type-C(R)

Bluetooth Profile Support: A2DP (Audio)
GATT (MIDI over Bluetooth Low Energy)

Power Supply Rechargeable lithium-ion battery
Supplied from the USB port

Current Draw 500 mA

Expected battery life under continuous use Approximately 5 hours
* These figures will vary depending on the actual conditions of use.

Battery charging time Approximately 3 hours
* To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 500 mA or higher).

Accessories

Leaflet “Quick Start“
Leaflet “USING THE UNIT SAFELY“
USB Type-C(R) to USB Type-A cable

Options (sold separately)

Wireless MIDI Expression Pedal: EV-1-WL
Wireless Foot Switch: FS-1-WL
Carrying Pouch: CB-KTNGO

Size and Weight (Include handle and rubber feets)

Width 45 mm 1-13/16 inches

Depth 125 mm 4-15/16 inches

Height 29 mm 1-3/16 inches

Weight 65 g  3 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.

Standard Features

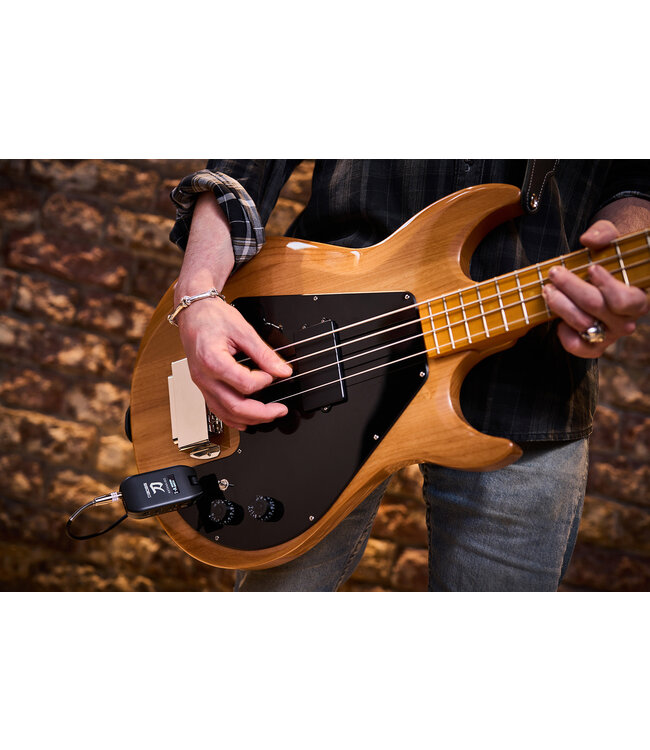

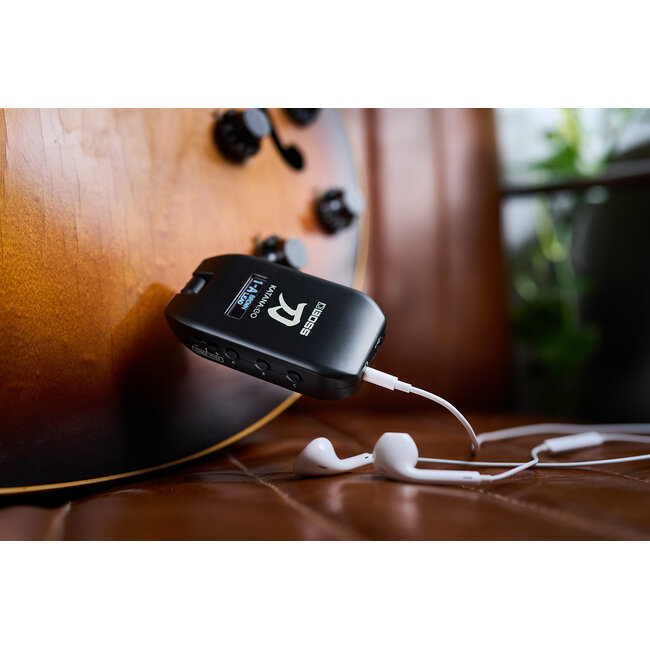

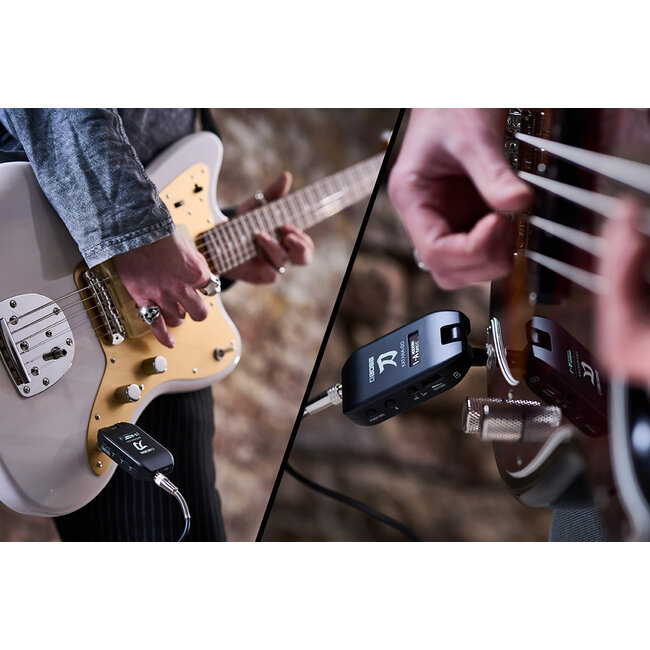

• Personal headphone amp with premium guitar and bass tones from stage-class Katana amplifiers
• Guitar mode with 10 amp types and over 60 effects

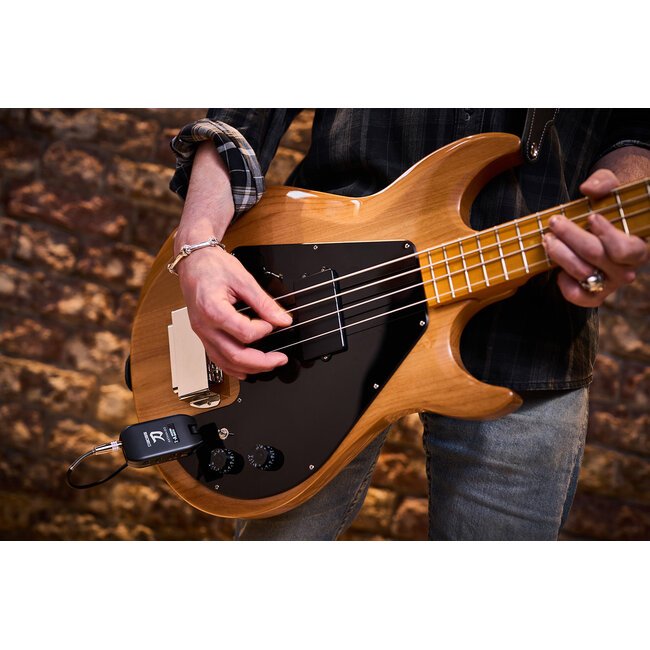

• Bass mode with three amp types and over 60 effects
• Stage Feel function provides an immersive headphone experience with advanced BOSS spatial technology
• 30 user memories in each mode filled with ready-to-play sounds

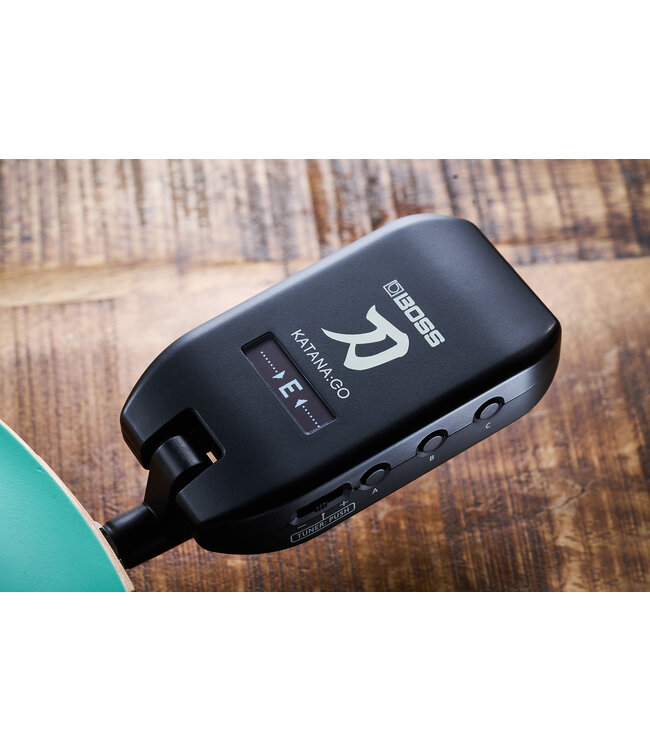

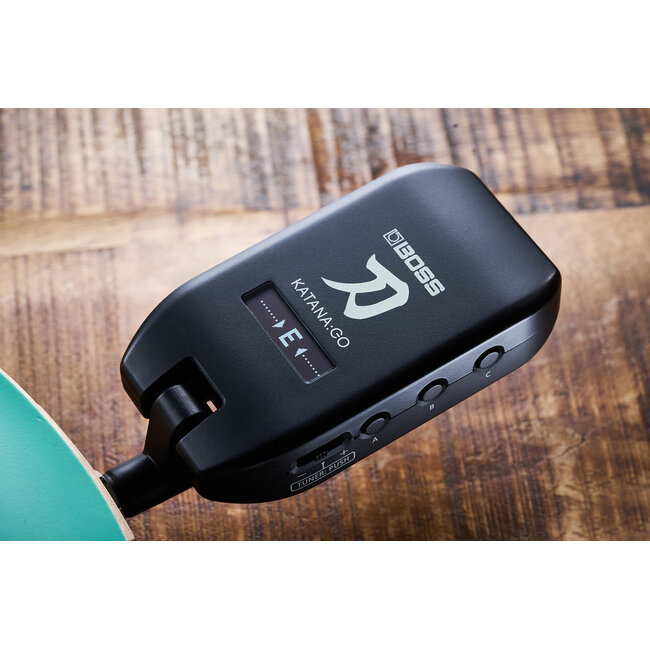

• View memory names and the onboard tuner with the OLED display
• Wirelessly edit sounds and play along with music from your mobile device via Bluetooth®
• Companion BOSS Tone Studio app with powerful tools for sound editing, memory organization, and YouTube practice
• Download and share Livesets at BOSS Tone Exchange
• Supports import of Tone Setting data from Katana guitar and bass amplifiers
• Rechargeable battery with up to five hours of continuous runtime

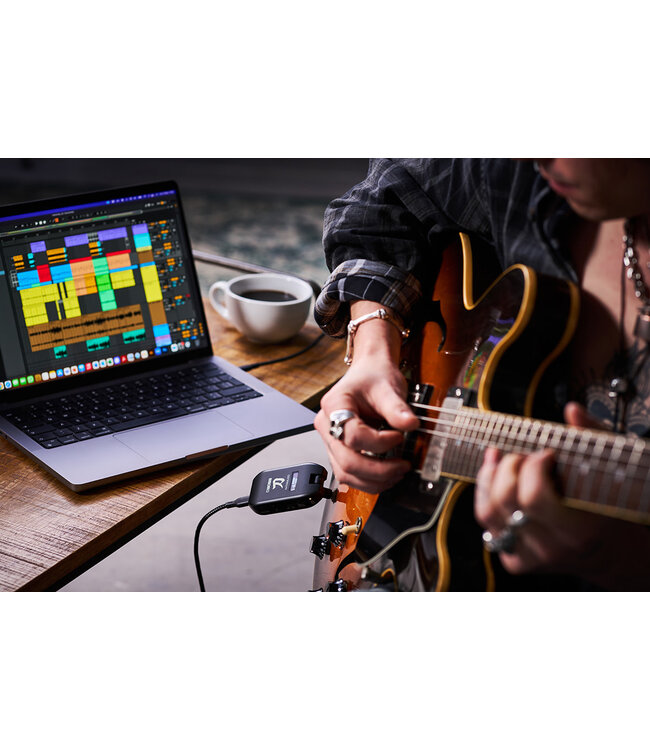

• Record/playback tracks in music production software on a computer or mobile device* via a USB-C®
• Wireless external foot control via the optional EV-1-WL Wireless MIDI Expression Pedal and FS-1-WL Wireless Footswitch
• Optional CB-KTNGO carrying pouch for KATANA:GO, charging cable, and other accessories

The latest KATANA:GO product has the same sounds and features as the earlier model.

For optimal performance, stay up to date with the current KATANA:GO system software and BOSS Tone Studio.
