SPECIFICATIONS

Nominal Input Level -20 dBu

Input Impedance 1 M ohm

Nominal Output Level -20 dBu

Output Impedance 1 k ohm

Recommended Load Impedance 10 k ohms or greater

Bypass Buffered bypass

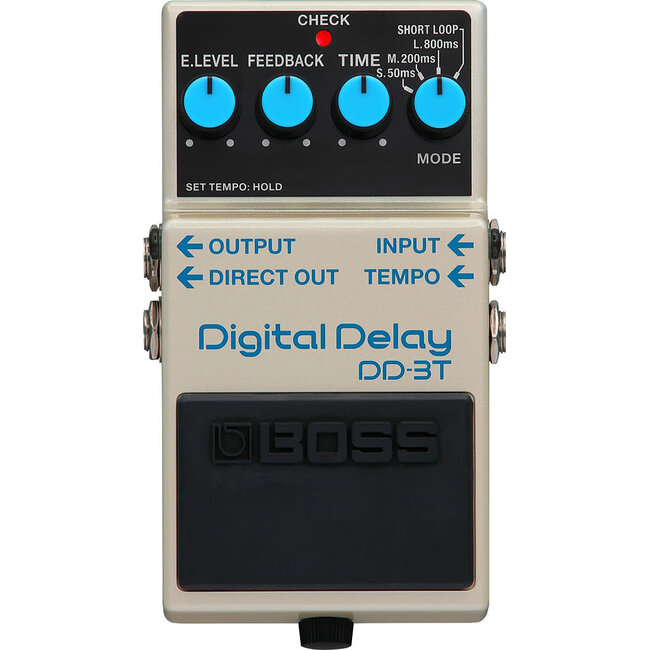

Controls

MODE knob
TIME knob
FEEDBACK knob
E.LEVEL(Effect Level) knob
Pedal switch

Indicator CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack

Power Supply Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) Current Draw 70 mA

Expected battery life under continuous use Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.

Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)

Options (sold separately) AC adaptor: PSA series  Footswitch: FS-5U, FS-6, FS-7

SIZE AND WEIGHT

Width 73 mm  2-7/8 inches

Depth 129 mm  5-1/8 inches

Height 59 mm  2-3/8 inches

Weight (including battery) 420 g  15 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
