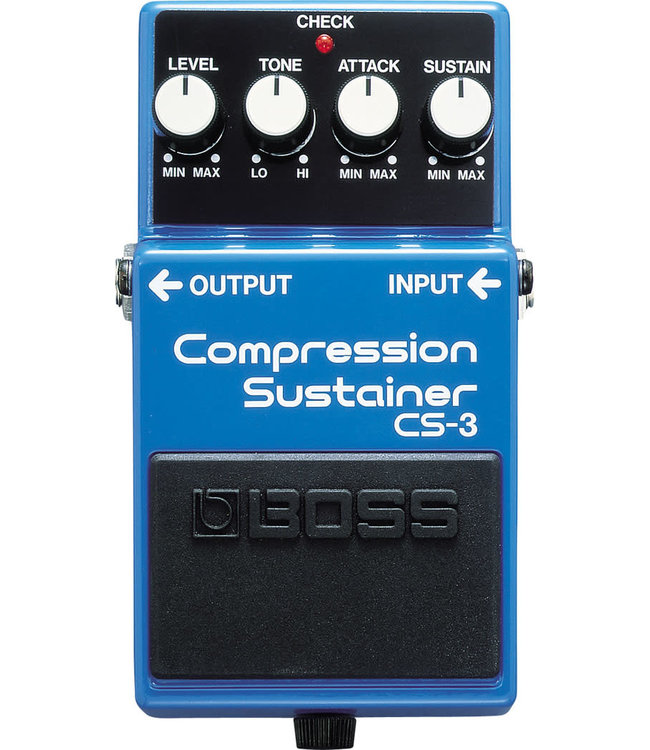

BOSS CS-3
Comprimeert de luide en versterkt de zwakke signalen. Dit geeft een vlotte sustain zonder afbreuk aan de klankkwaliteit. Een interne EQ zorgt voor een precieze toonregeling en herleidt ruis en bijgeluiden tot een absoluut minimum.
SPECIFICATIONS
Nominal Input Level-20 dBu
Input Impedance 1 M ohm
Nominal Output Level-20 dBu
Output Impedance1 k ohm
Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass
Controls
SUSTAIN knob
ATTACK knob
TONE knob
LEVEL knob
Pedal switch Indicator CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply Carbon-zinc battery (9V, 6F22) or Alkaline battery (9V, 6LR61)
AC adaptor (PSA series: sold separately) Current Draw20 mA
Expected battery life under continuous use Carbon: Approx. 10.5 hours
Alkaline: Approx. 26 hours
*These figures will vary depending on the actual conditions of use.AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery/9 V type (6F22) Options (sold separately)
AC adaptor: PSA series
SIZE AND WEIGHT
Width73 mm
2-7/8 inches
Depth129 mm
5-1/8 inches
Height59 mm
2-3/8 inches
Weight380 g14 oz
